SLU 76NGXB

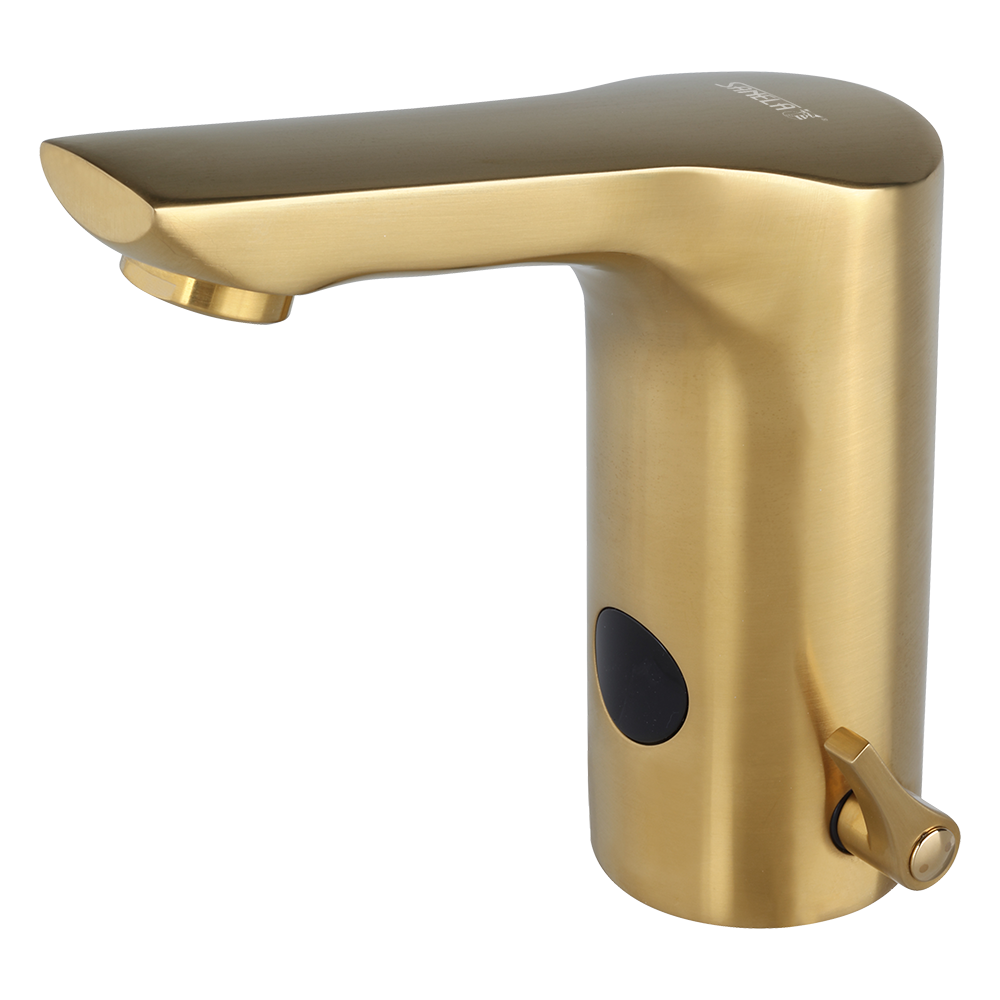

Washbasin mixer, GOLD MATT, 6 V

Washbasin mixer, GOLD MATT, 6 V

New product

Characteristics

  • includes Bluetooth control (paid Sanela Control app available for download)
  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • durable PVD surface finish
  • possibility of water temperature adjustment by mixer and follow-up plug by cover
  • electromagnetic valve is in the tap body
  • is destined for cold and hot water, temperature is regulated by mixer
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 03
  • Order number: 23769
  • EAN: 8591385237690
I am interested in more information:

Supply specification

SLU 76NGXB - Supply No. 23769 - faucet with mixer, electronics including Bluetooth module and solenoid valve, coupling hoses, filter and check valve (2 pcs.), cover for temperature mixer, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information


Dimensions:
152 x 145 mm
Weight:
2,04 kg
Operating voltage: 6 V
Battery life:
4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day)
Active range: standard 0,13 - 0,19 m

START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Economical aerator 3,8 l/min, 1,0 gpm…
Economical aerator 1,9 l/min, 0,5 gpm…
Remote control for an adjustment of…
