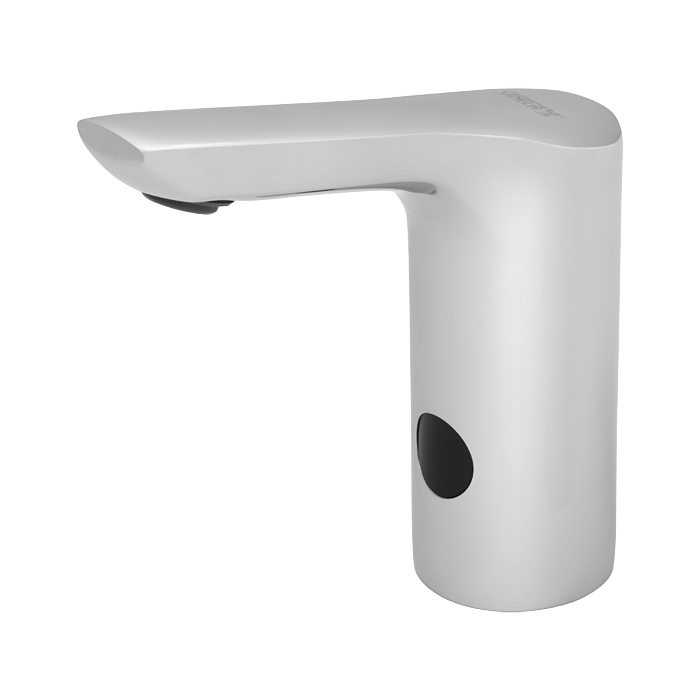

SLU 57B
Automatic washbasin tap for cold and hot water, 6 V
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economical aerator, flow rate 6 l/min
- hygienic flush
- is intended for supplying hot and cold water, adjustment of temperature manually by angle valves
- responds to the presence of hands in the sensing zone with immediate water activation
- the water will be turned off after removing hands once the set time elapses (can be set in the range 0.25 – 7.75 s)
- safety function: water shut-off after 5 minutes
- battery status monitoring
- option to switch to START/STOP mode
- parameter settings and communication with the electronics via Sanela Control app (Bluetooth) or the SLD 03
- Order number: 03575
I am interested in more information:
Supply specification
SLU 57B - Supply No. 03575 - tap body including Bluetooth module, with electronics, solenoid valve (1 pc.), Y piece fitting and hoses assembly with integrated check valves, connecting hose, check valve (2 pcs.), 4 pcs AA alkaline batteries 1.5 V, 2700 mAh with case
Technical information
| Dimensions: | 152 x 145 mm |
| Weight: | 1,86 kg |
| Operating voltage: | 6 V |
| Power input: | 3 W |
| Battery life: | 4 pcs. AA alkaline batteries 1.5 V, 2700 mAh (approx. 2 years with 100 activations per day) |
| Active range: | standard 0,13 - 0,19 m, in START/STOP mode 0,05 - 0,15 m |
| Recommended working pressure: | 0,1 - 0,6 MPa |
| Flow rate: | 6 l/min. (inf. data) |
| Water inlet: | external thread G 1/2“ |
Downloads
- Mounting instructions (3.81 MB)
- Catalogue list (124.72 kB)
- 2D Drawing (266.3 kB)
