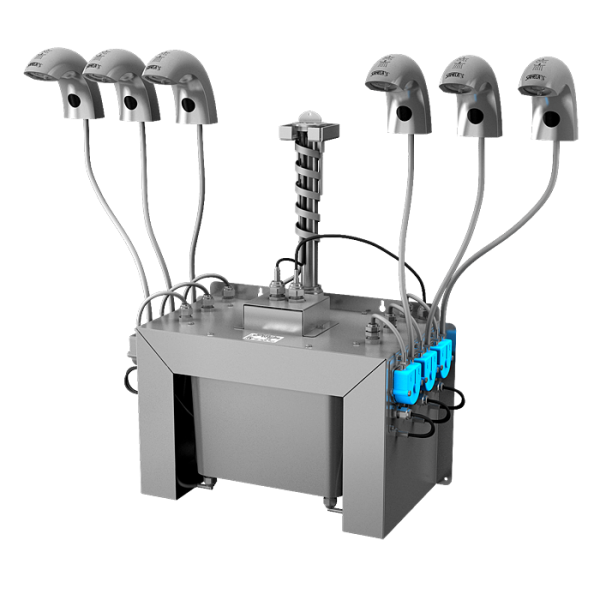

SLU 45M6

Set of 6 pcs. automatic washbasin taps for cold or premixed water, with integrated automatic soap dispenser, 6 l central soap canister, 24 V DC


  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • easy soap refilling
  • soap economy
  • SLU 45M2 - M6 are destined for cold or premixed water
  • system reacts to the hands in front of the sensor
  • 2 - 6 pcs. of taps with soap dispenser with central unit
  • use in the public sector, container for soap 6 l
  • parameters adjustment using by the remote control SLD 03
Order number 03458
Code SLU 45M6

Supply specification

SLU 45M6 - Supply No. 03458 - faucet with an electronics (6 pcs.), connecting hoses, angle valve with filter (6 pcs.), electromagnetic valve (6 pcs.), central soap dispenser with peristaltic pumps for liquid soap and soap container 6 l, power supply SLZ 01Z, remote control SLD 03

Technical information

Operating voltage: 24 V DC
Active range: 0,14 - 0,2 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
Recommended soap viscosity: 10 mPa - 5000 mPa (don‘t use chemical solvents and disinfection)
