SLU 45M2

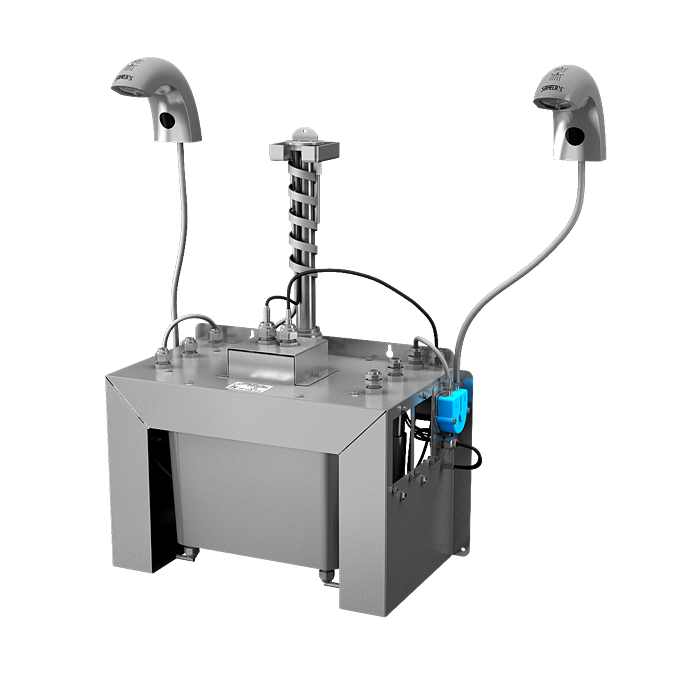

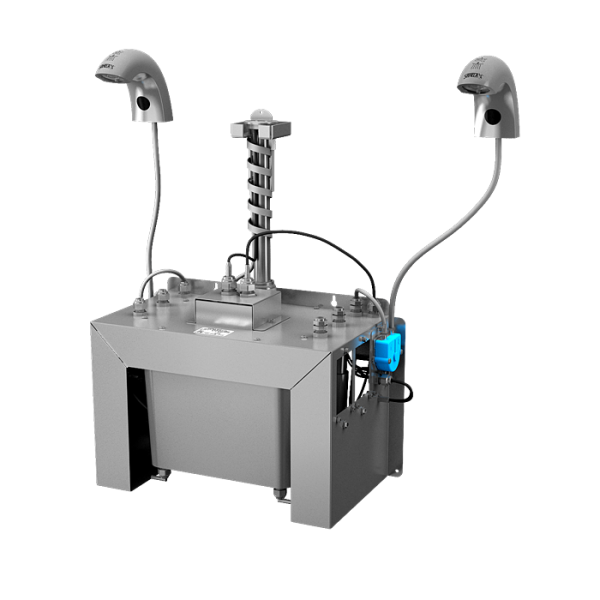

Set of 2 pcs. automatic washbasin taps for cold or premixed water, with integrated automatic soap dispenser, 6 l central soap canister, 230 V AC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • easy soap refilling
  • soap economy
  • SLU 45M2 - M6 are destined for cold or premixed water
  • system reacts to the hands in front of the sensor
  • 2 - 6 pcs. of taps with soap dispenser with central unit
  • use in the public sector, container for soap 6 l
  • parameters adjustment using by the remote control SLD 03
  • Order number: 03453
I am interested in more information:

Supply specification

SLU 45M2 - Supply No. 03453 - faucet with an electronics (2 pcs.), connecting hoses, angle valve with filter (2 pcs.), electromagnetic valve (2 pcs.), central soap dispenser with peristaltic pumps for liquid soap and soap container 6 l, power supply SLZ 01Y, remote control SLD 03

Technical information

Material: stainless steel
Temperature regulation: for cold or premixed water
Power supply: 230V AC
Control: infra-red
Operating voltage: 230 V AC
Active range: 0,14 - 0,2 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
Recommended soap viscosity: 10 mPa*s - 5000 mPa*s (don‘t use chemical solvents and disinfection)

Downloads

Accessories

Economical aerator 3,8 l/min, 1,0 gpm…
Economical aerator 1,9 l/min, 0,5 gpm…
Thermostatic mixing valve 3/4
Thermostatic mixing valve 1/2” (20l/min)
