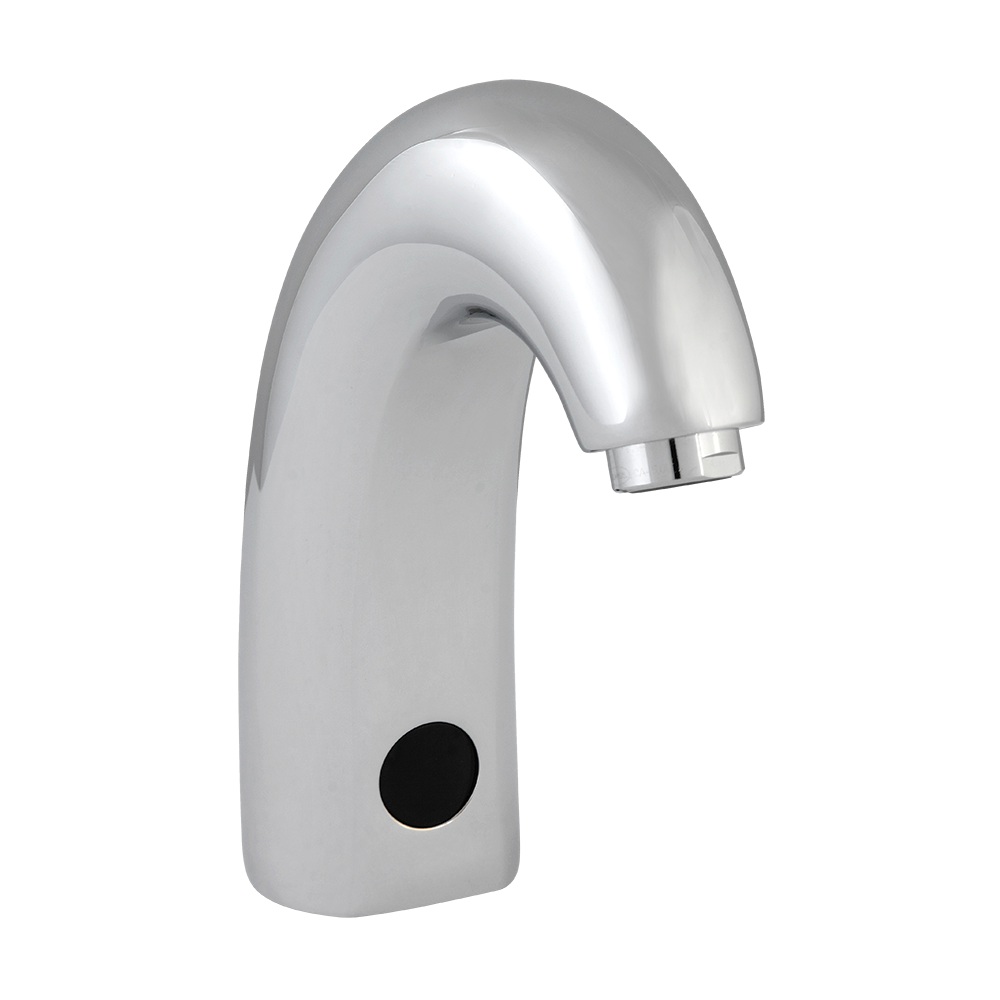

SLU 35B

Washbasin tap for cold and hot water, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • SLU 35 is destined for cold and hot water, temperature is regulated by angle valves
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03355

Supply specification

SLU 35B - Supply No. 03355 - faucet with an electronics, electromagnetic valve (1 pcs.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

material: chrome
temperature regulation: for cold and hot water
power supply: battery operated
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads
