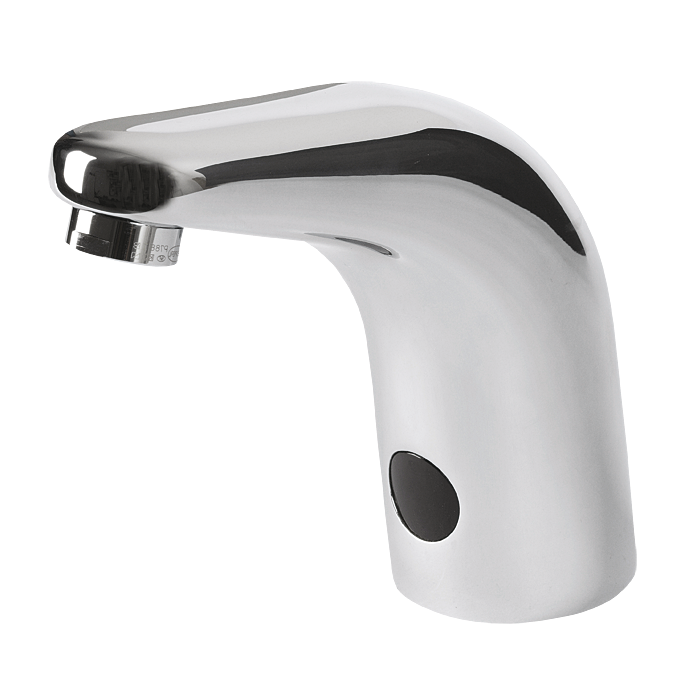

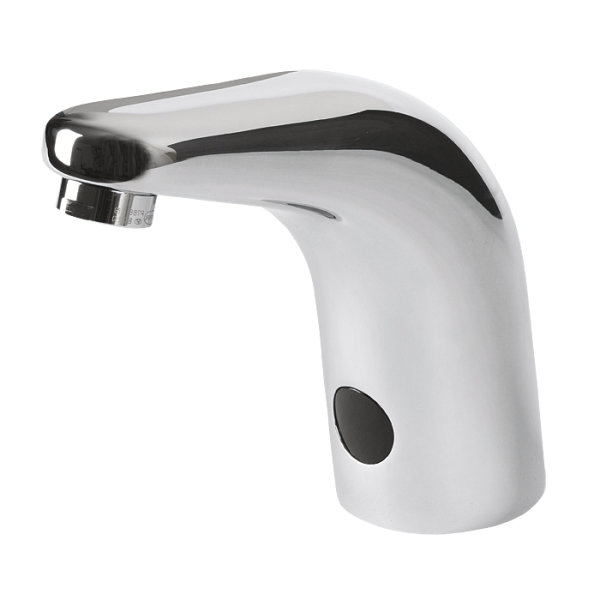

SLU 30B
Washbasin tap for cold and hot water, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- is destined for cold and hot water, temperature is regulated by angle valves
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 03305
I am interested in more information:
Supply specification
SLU 30B - Supply No. 03305 - faucet with electronics, electromagnetic valve (1 pcs.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day) |
| Active range: | standard 0,13 - 0,19 m |
| START/STOP program 0,05 - 0,15 m | |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.87 MB)
- Catalogue list (164.88 kB)
