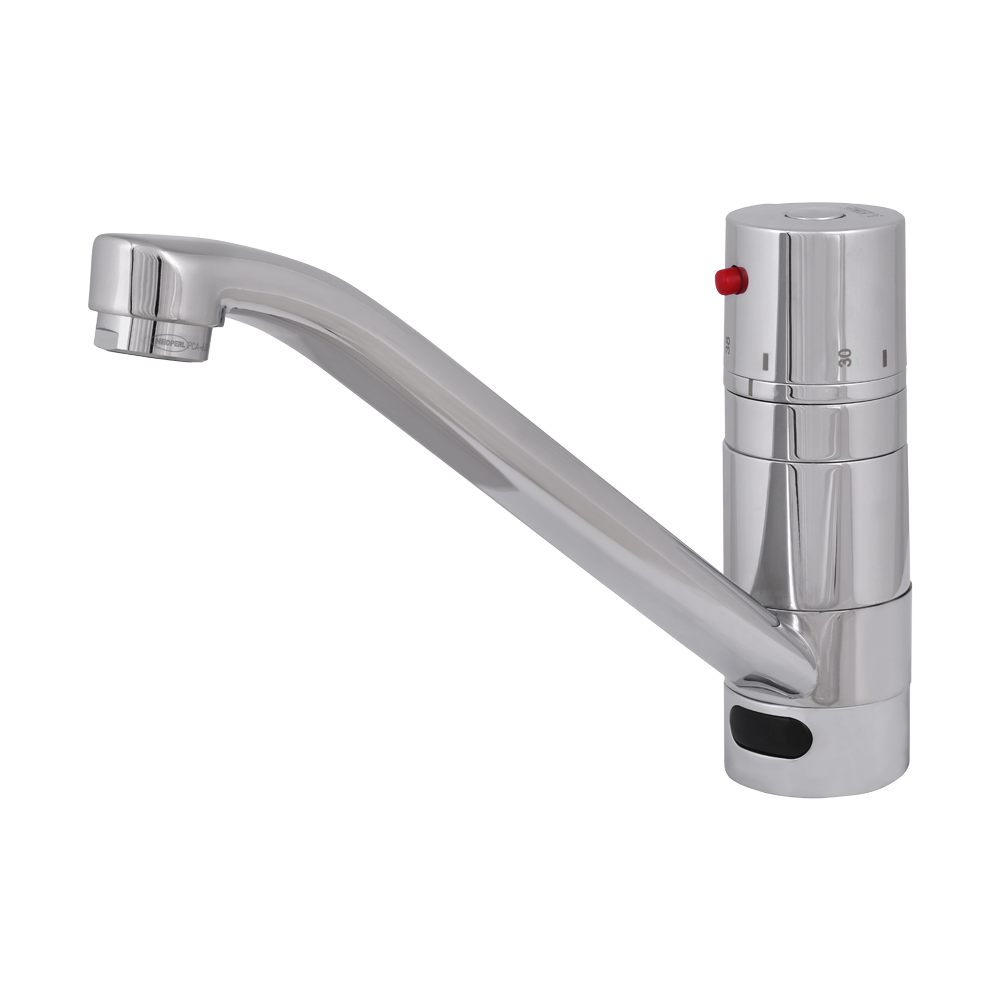

SLU 24DB

Washbasin and sink thermostatic mixer with elongated spout, 6 V

Characteristics

  • hygienic flush
  • fixed faucet
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 13242

Supply specification

SLU 24DB - Supply No. 13242 - elongated faucet with thermostat and electronics, holder of electronics, electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

material: chrome
temperature regulation: with thermostat
power supply: battery operated
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day)
Active range: standard 0,17 - 0,25 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
