SLU 09PTB

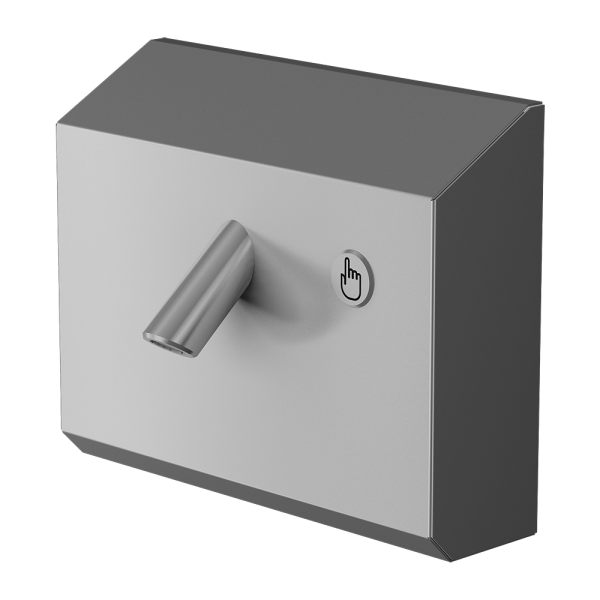

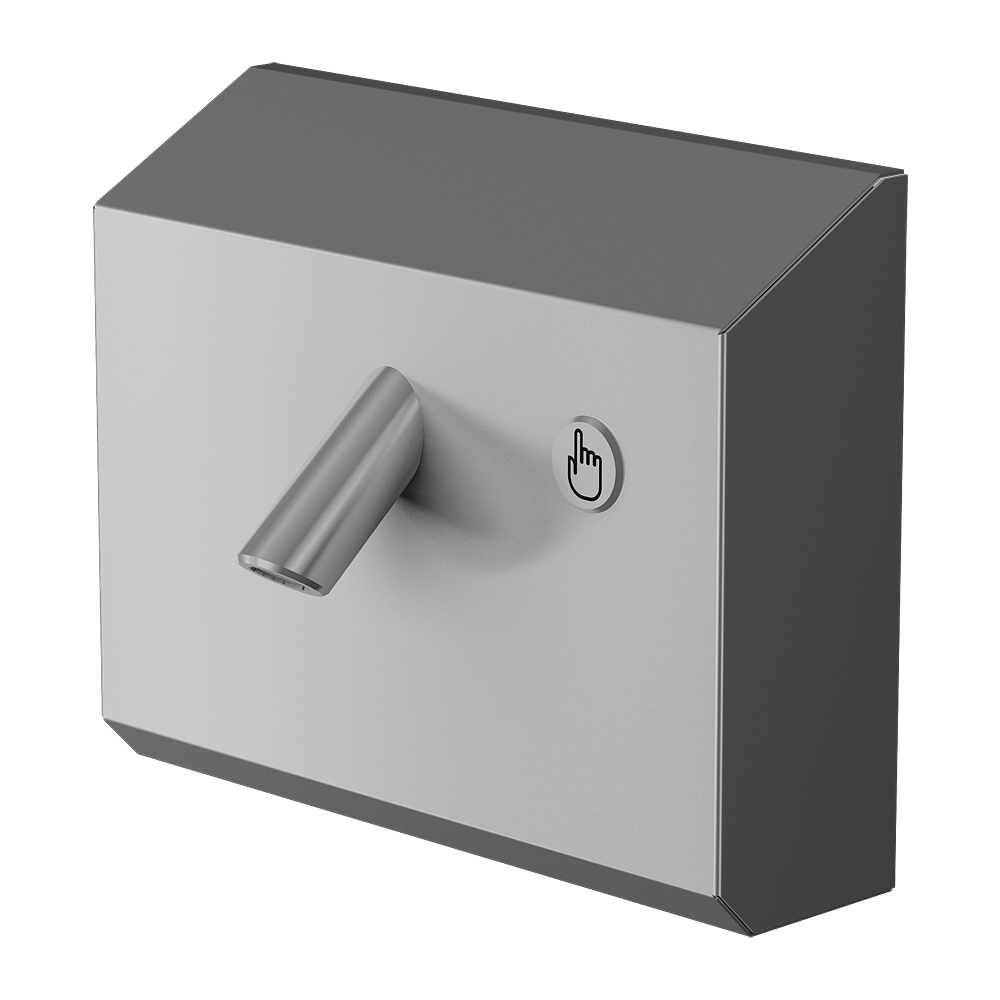

Wall-mounted piezo washbasin tap, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for a prison
  • special anti-suicide spout
  • special vandal-proof stainless steel cover
  • is destined for cold and hot water, temperature is regulated by thermostatic valve
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • monitoring of battery capacity
  • parameter adjustment using by the remote control SLD 04
  • Order number: 13091

Supply specification

SLU 09PTB - Supply No. 13091 - stainless steel cover with spout, electronics, electromagnetic valve (1 pc.) and thermostatic valve, angle valve with filter and check valve (2 pcs.), safety screws (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: with thermostat
power supply: battery operated
control: piezo
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
