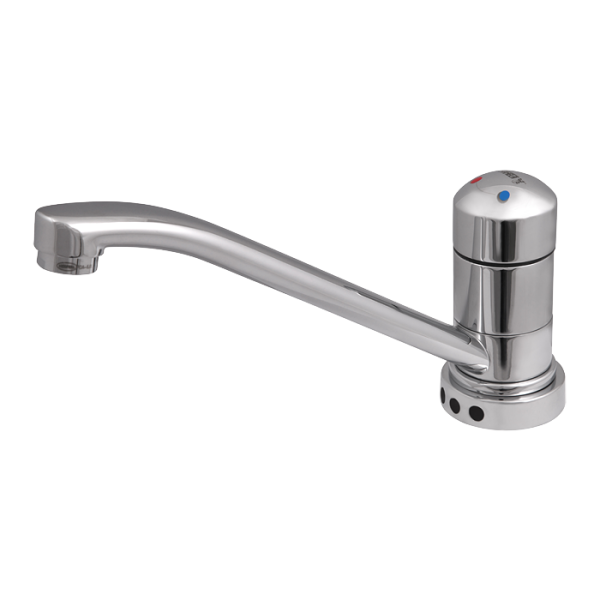

SLU 03DB

Washbasin and sink mixer with elongated spout, 9 V

Characteristics

hygienic flush
fixed faucet
is destined for cold and hot water, temperature is regulated by an integrated mixer
water is flowing as long as hands are in the active range
water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
function of automatic water stop after 5 minut of continuous flow
monitoring of battery capacity
START/STOP program
parameter adjustment using by the remote control SLD 03

Order number	13032
Code	SLU 03DB

Supply specification

SLU 03DB - Supply No. 13032 - elongated faucet with mixer cartrige, sensing head with electronics, holder of electronics, electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter and check valve (2 pcs.), lithium battery SLA 09 with battery case

Technical information

Operating voltage: 9 V
Battery life: lithium 9V, type U9VL (aprox. 2 years (100 uses per day)
Active range: standard 0,17 - 0,25 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
