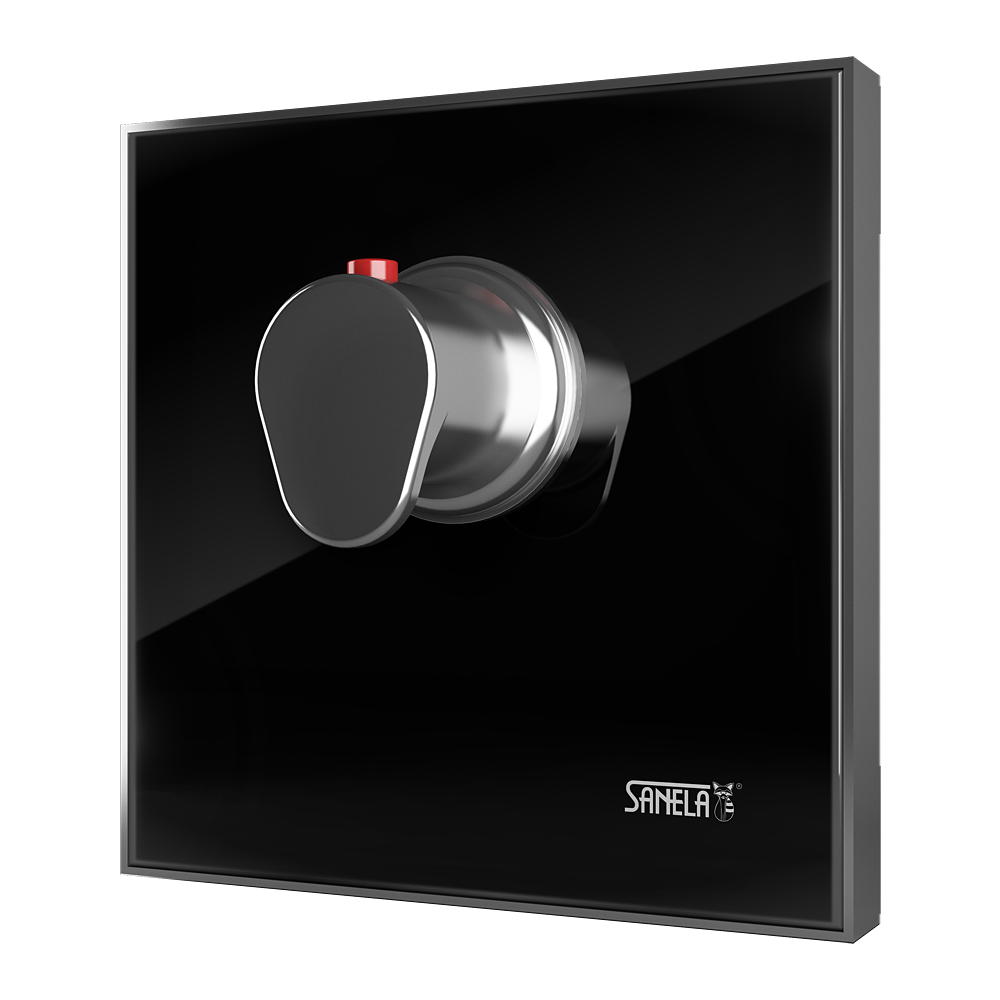

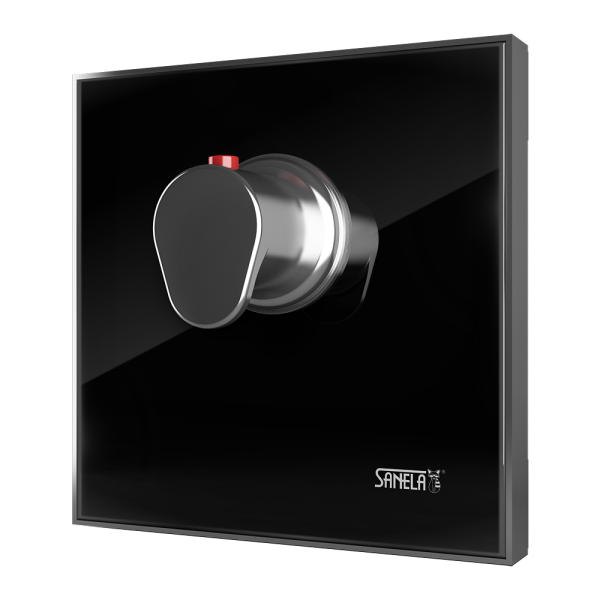

SLT 12E
Thermostatic mixing valve 1/2“ in glass panel, colour black REF 9005
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- thermostatic mixing valve 1/2“ in glass cover
- is destined for cold and hot water, temperature is regulated by thermostatic mixer
- stop flowing of hot water in case of cold water failure
- temperature of water is adjusted within the range 15 - 50 °C
- for the right function the pressure of water have to be the same on the both water inlets
- Order number: 09124
I am interested in more information:
Supply specification
SLT 12E - Supply No. 09124 - glass cover in stainless steel mounting frame (colour black REF 9005), stainelss steel mounting box with ball and termostatic valve, check valves, thermostatic mixer
Technical information
| Glass cover dimension: | 170 x 170 mm |
| Mounting box dimension: | 200 x 200 x 80 mm |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 20 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (4.12 MB)
- Catalogue list (202.29 kB)
- 2D Drawing (213.79 kB)
