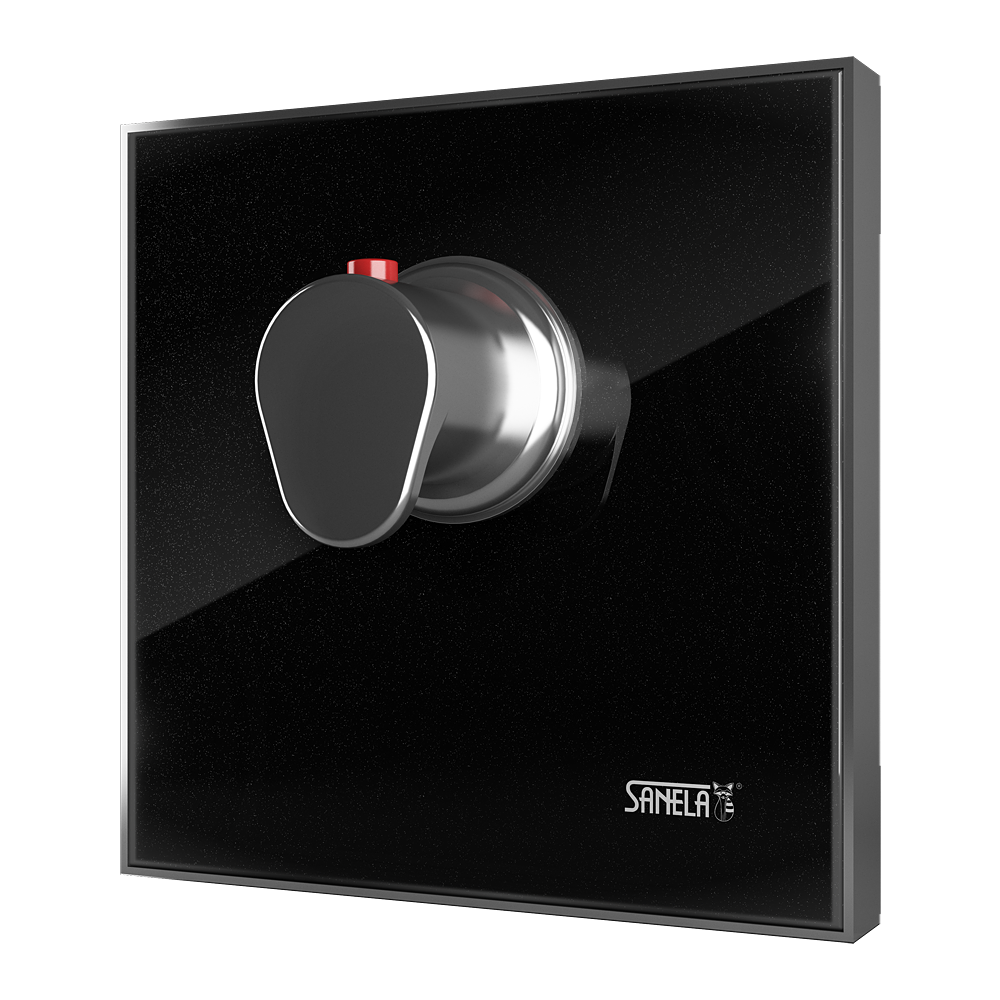

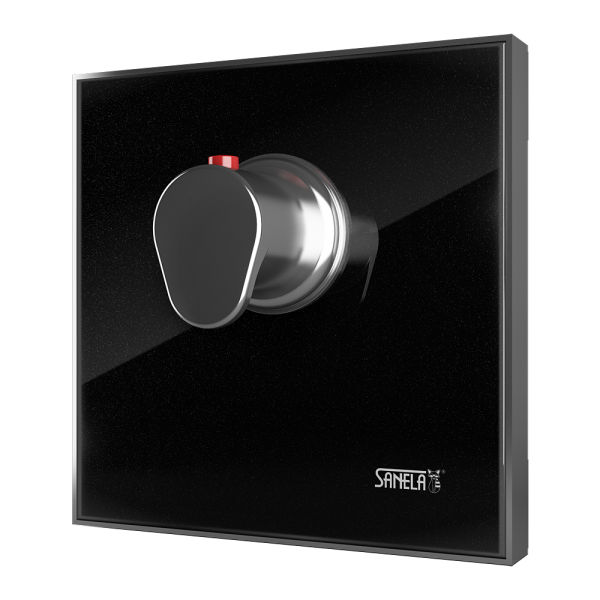

Thermostatic mixing valve 1/2“ in glass panel, colour metallic black REF 0337


  • thermostatic mixing valve 1/2“ in glass cover
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • stop flowing of hot water in case of cold water failure
  • temperature of water is adjusted within the range 15 - 50 °C
  • for the right function the pressure of water have to be the same on the both water inlets
  • Order number: 09123
I am interested in more information:

Supply specification

SLT 12D - Supply No. 09123 - glass cover in stainless steel mounting frame (colour metallic black REF 0337), stainelss steel mounting box with ball and termostatic valve, check valves, thermostatic mixer

Technical information

Glass cover dimension: 170 x 170 mm
Mounting box dimension: 200 x 200 x 80 mm
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 20 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
