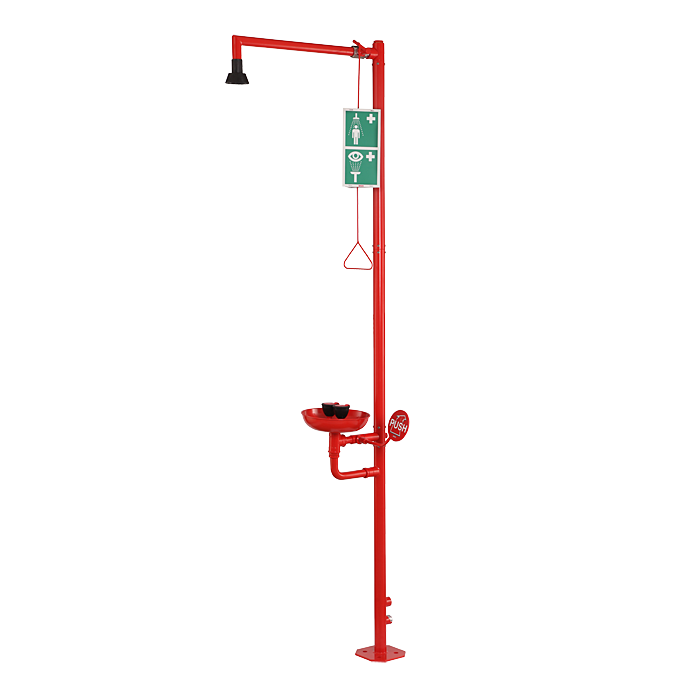

SLSN 23
Free standing body and eyes shower - body shower with start trigger and self-cleaning shower head, eyes shower with two spray heads, bowl and start lever
Characteristics
- suitable for medical facilities and industry
- used as first aid if eyes impacted by accidents caused by fire, chemical or other dangerous substances
- free standing body and eyewash shower - body shower with start trigger and self-cleaning shower head, eyewash shower with two spray heads, bowl and start lever
- integrated ball valve for regulation of water flow
- floor installation
- special chemically resistant red lacquer
- Order number: 92230
I am interested in more information:
Supply specification
SLSN 23 - Supply No. 92230 - eyewash and body shower, mounting set
Technical information
| Type: | with two spray heads |
| Installation: | free standing |
| Rate of flow: | eyewash shower - 26 l/min. at 0,01 MPa |
| body shower - 60 l/min. at 0,01 MPa | |
| Water outlet: | male thread G 1“ |
| Water inlet: | male thread G 1“ |
Downloads
- Mounting instructions (1.15 MB)
- User guide (3.21 MB)
- Catalogue list (156.77 kB)
- 2D Drawing (812.15 kB)
