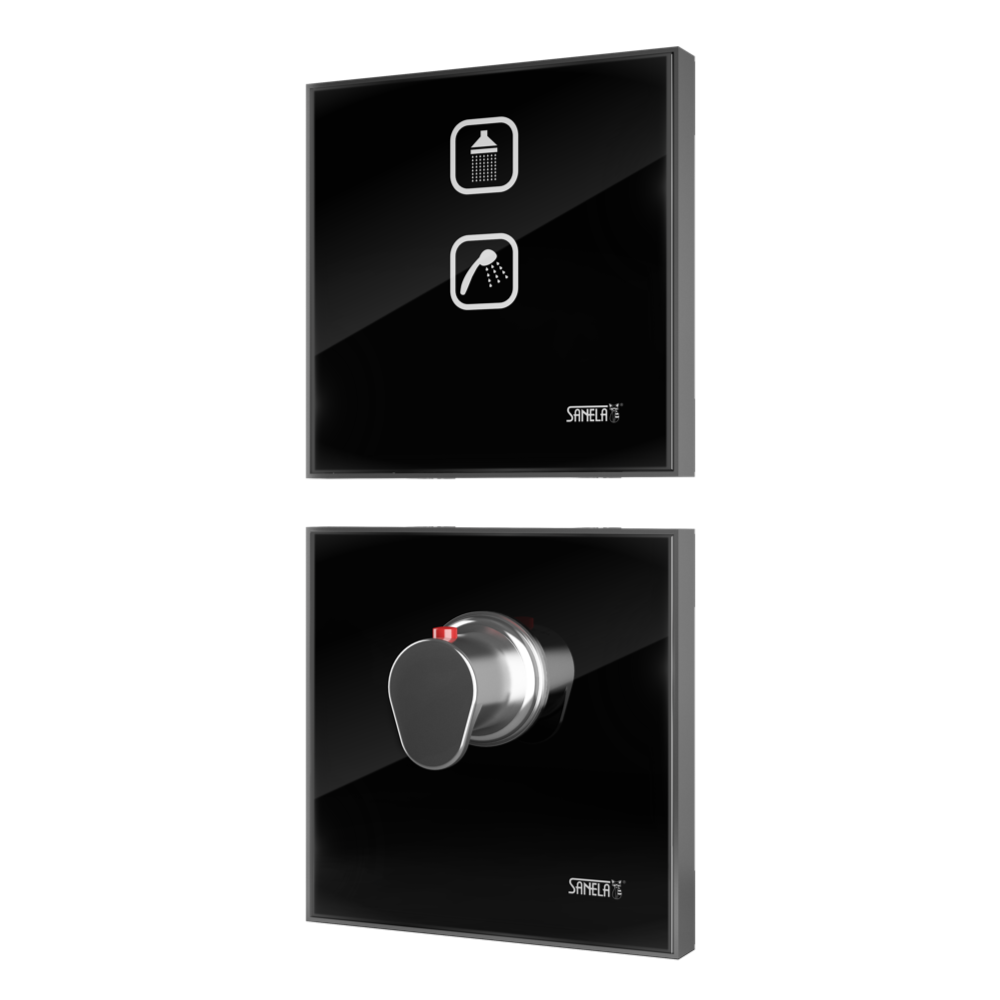

SLS 32E

Electronic Touch Control for Head and Hand Shower with Thermostatic Mixing Valve, colour black REF 9005, backlit of the symbol white, 24 V DC

Characteristics

  • hygienic flush
  • electronic touch control for head and hand shower with thermostatic mixing valve 1/2“ in glass cover
  • water is flowing after the gentle touch of a symbol on a glass cover
  • both, the head and hand shower can be used at the same time (if there‘s enough water pressure)
  • water stops flowing after adjustable flowing time (can be set in range 10 s - 310 s), standard 300 s
  • water could be stopped by follow-up gentle touch of backlit symbol
  • stop flowing of hot water in case of cold water failure
  • temperature of water is adjusted within the range 15 - 50 °C
  • for the right function the pressure of water have to be the same on the both water inlets
  • parameters adjustment using by the remote control SLD 06
  • adjust the colour and intensity of the backlight using the SLD 10 remote control
  • Order number: 02323
  • EAN: 8591385023231
I am interested in more information:

Supply specification

SLS 32E - Supply No. 02323 glass cover in stainless steel mounting frame with electronics (colour black REF 9005, backlit of the symbol white) (2 pcs.), stainelss steel mounting box with ball valve and electromagnetic valve, stainless steel mounting box with thermostatic valve, check valves, connecting part, waterproofing foil

Technical information

Glass cover dimension 170 x 170 mm
Mounting box dimension 200 x 200 x 87 mm
Operating voltage 24 V DC
Recommended flow pressure 0,1 - 0,6 MPa
Rate of flow 20 l/min. (inf. data)
Water inlet male thread G 3/4“
Water outlet male thread G 3/4“

Downloads

Accessories

Vandal-proof shower head
Vandal-proof shower head, adjustable…
Vandal-proof shower head
Vandal-proof shower head
Vandal-proof shower head
Suction cup for disassembly of glass…
Remote control for adjusting the colour…
