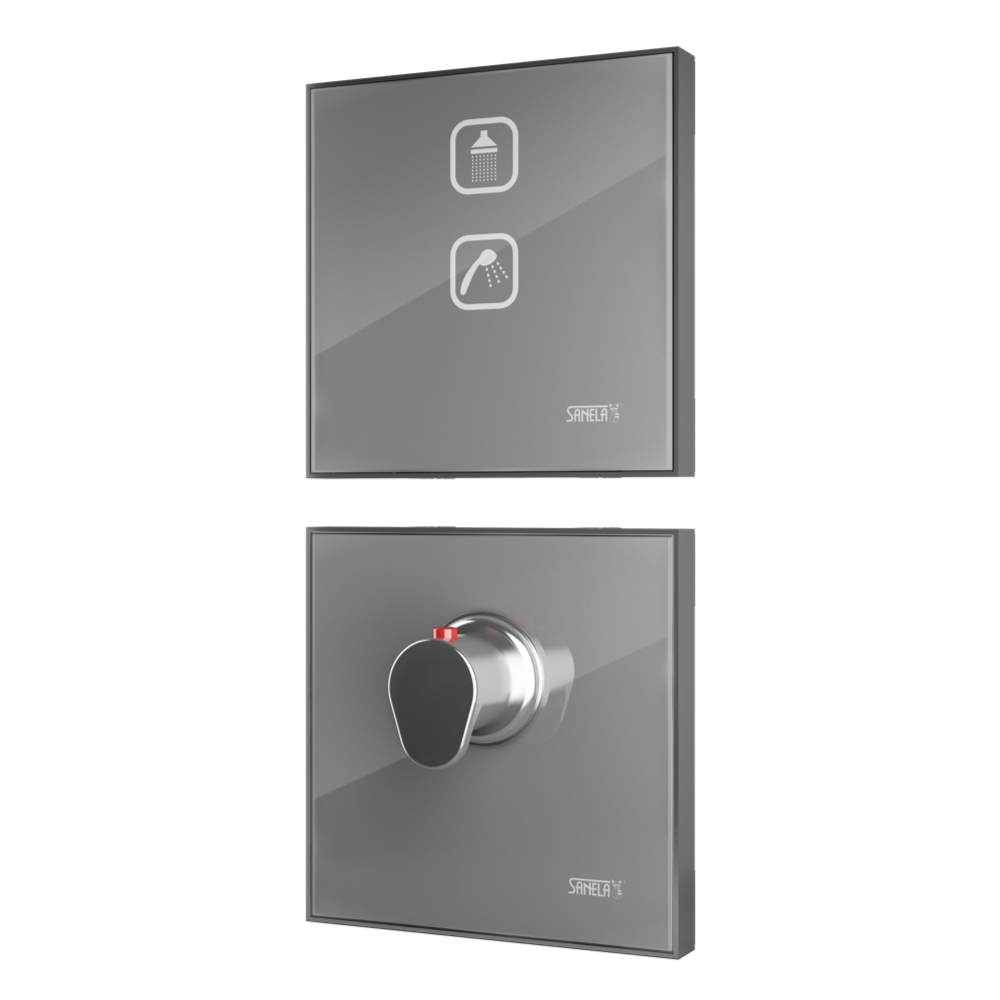

SLS 32B
Electronic Touch Control for Head and Hand Shower with Thermostatic Mixing Valve, colour light grey REF 9006, backlit of the symbol cyan, 24 V DC
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- hygienic flush
- electronic touch control for head and hand shower with thermostatic mixing valve 1/2“ in glass cover
- water is flowing after the gentle touch of a symbol on a glass cover
- both, the head and hand shower can be used at the same time (if there‘s enough water pressure)
- water stops flowing after adjustable flowing time (can be set in range 10 s - 310 s), standard 300 s
- water could be stopped by follow-up gentle touch of backlit symbol
- stop flowing of hot water in case of cold water failure
- temperature of water is adjusted within the range 15 - 50 °C
- for the right function the pressure of water have to be the same on the both water inlets
- parameters adjustment using by the remote control SLD 06
- adjust the colour and intensity of the backlight using the SLD 10 remote control
- Order number: 02320
- EAN: 8591385023200
I am interested in more information:
Supply specification
SLS 32B - Supply No. 02320 - glass cover in stainless steel mounting frame with electronics (colour light grey REF 9006, backlit of the symbol cyan) (2 pcs.), stainelss steel mounting box with ball valve and electromagnetic valve, stainless steel mounting box with thermostatic valve, check valves, connecting part, waterproofing foil
Technical information
| Material: | glass |
| Temperature regulation: | with thermostat |
| Power supply: | 24V DC |
| Control: | electronic touch |
| Glass cover dimension | 170 x 170 mm |
| Mounting box dimension | 200 x 200 x 87 mm |
| Operating voltage | 24 V DC |
| Recommended flow pressure | 0,1 - 0,6 MPa |
| Rate of flow | 20 l/min. (inf. data) |
| Water inlet | male thread G 3/4“ |
| Water outlet | male thread G 3/4“ |
Downloads
- Mounting instructions (5.23 MB)
- Catalogue list (232.61 kB)
- 2D Drawing (465.79 kB)
