SLR 04

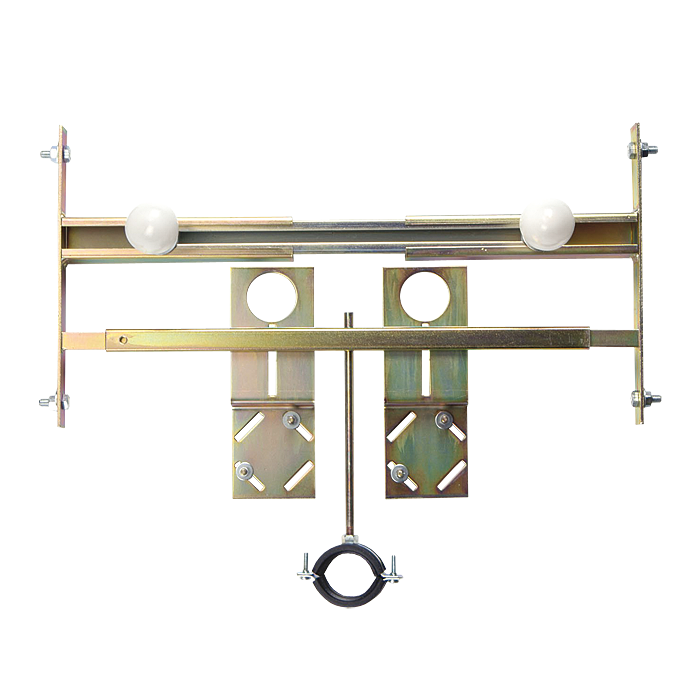

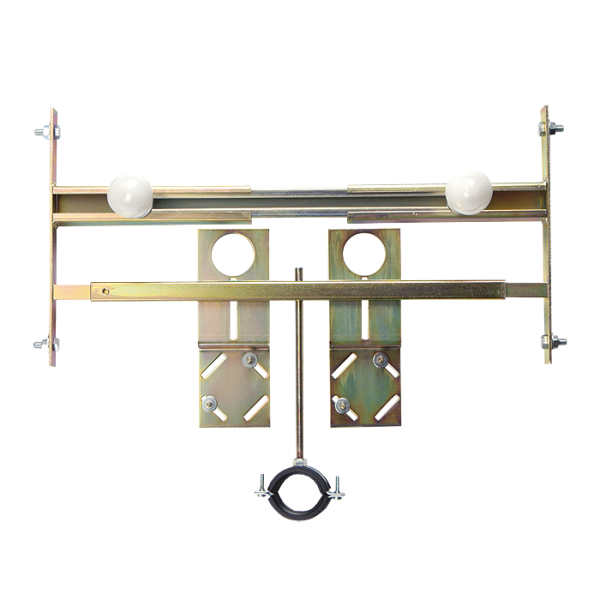

Mounting frame to the plasterboard for a hanging washbasin

Characteristics

  • is destined for plasterboard constructions
  • is destined for ceramic washbasins
  • possibility to use it for distances between axes of CW 420 to 600 mm
  • surface fi nishing - yellow zinc-chromat
  • mounting to CW profi les by screws with classic nuts
  • mounting screws M10 and waste pipe holder Ø 40 mm
  • Order number: 08040
I am interested in more information:

Supply specification

SLR 04 - Supply No. 08040 - mounting frame for plasterboard constructions for ceramic washbasin, mounting screws M10

Downloads

The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
