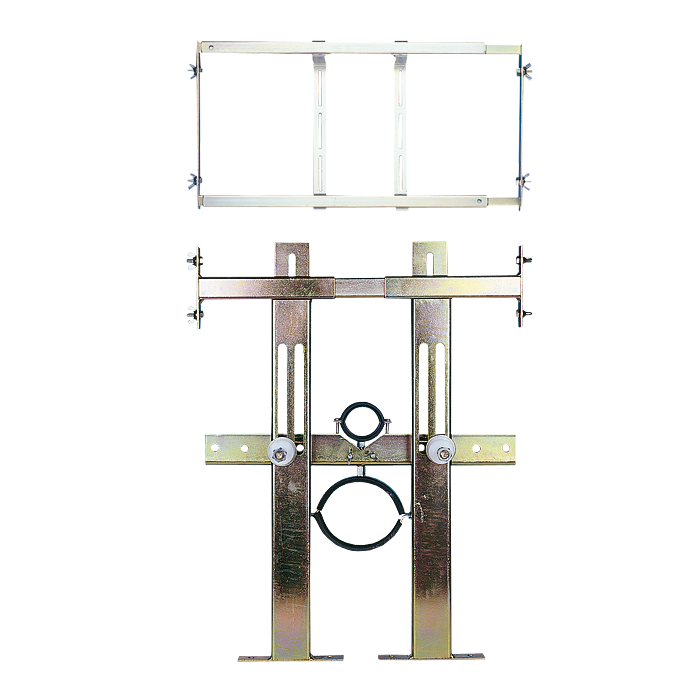

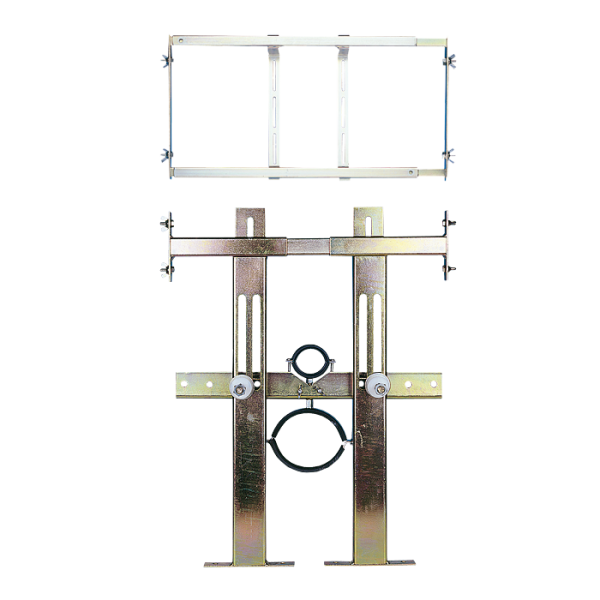

SLR 03N
Mounting frame to the plasterboard for a hanging toilet
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- is destined for plasterboard constructions
- is destined for mounting of wall hung toilet and infra-red flushing units, which is placed above the toilet
- possibility to use it for distances between axes of CW 420 to 600 mm
- possibility to use it at fixed distance 180 or 230 mm, the part for mounting of infra-red unit has to be placed at a height so that the open cover of toilet does not shade the active range of flushing unit
- mounting screws M12, waste pipe holder Ø 110 mm and watter inlet holder Ø 40 mm
- Order number: 08031
I am interested in more information:
Supply specification
SLR 03N - Supply No. 08031 - mounting frame for plasterboard constructions for wall hung toilets and infra-red flushing units, which is placed above the toilet, mounting screws M12
Downloads
- Mounting instructions (3.79 MB)
- 2D Drawing (289.32 kB)
