SLPN 02EB

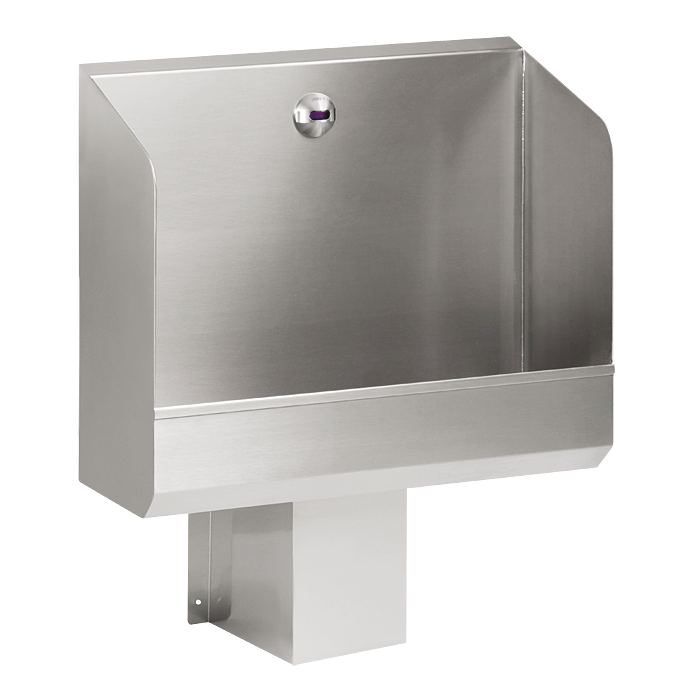

Stainless steel urinal trough with integrated infra-red flushing unit, 6 V

Characteristics

  • vandal-proof
  • stainless steel wall hung urinal trough with integrated infra-red electronics
  • every flushing unit reacts independently to the user attendance in front of the urinal at a maximum distance max. 0,7 m, minimum stay time in active range is 7,5 s
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • monitoring of battery capacity
  • different lenghts could be made to order
  • material AISI - 304
  • brushed finish
  • Order number: 91022
I am interested in more information:

Supply specification

SLPN 02EB - Supply No. 91022 - stainless steel urinal trough 600 mm with flushing head and electronics (1 pc.), electromagnetic valve (1 pc), angle valve with a filter, connecting hoses, mounting set, cover for siphon, siphon, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case (1 pc.)

Technical information

Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day)
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. by the pressure 0,3 MPa for 1 flushing head (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
