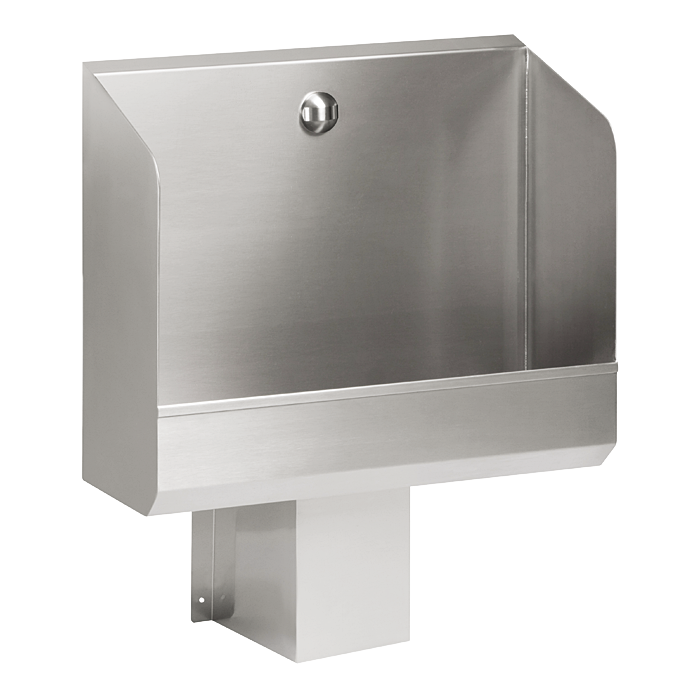

Stainless steel automatic urinal through with integrated thermic flushing unit, 600 mm, 6 V


  • vandal-proof
  • stainless steel wall hung urinal trough with integrated electronics
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04
  • automatic hygiene flushing after 6 hours non-use
  • different lenghts could be made to order
  • material AISI - 304
  • brushed finish
  • Order number: 91024
I am interested in more information:

Supply specification

SLPN 02CB - Supply No. 91024 - stainless steel urinal trough 600 mm with flushing head (1 pc.), electronics (1 pc.),electromagnetic valve (1 pc.), angle valve with a filter, mounting set, cover for siphon, siphon, 4 pcs. AA alkaline batteries 1,5 V 2700 mAh

Technical information

Trough type: wall hung
Category: urinal trough
Power supply: battery operated
Control: thermic
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries approx. 2 years AA, 1,5 V, 2700 mAh (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. by the pressure 0,3 MPa (inf. data)
Water inlet: male thread G 1/2“



Set of 4 pcs. of alcaline batteries
