SLP 35Z

Radar flushing unit with integrated power supply on the mounting rail for urinal Roca Zoom / Inker, 230 V AC

Characteristics

  • radar fl ushing unit for urinal INKER (Laufen)
  • economy fl ushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole fl ushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is fl owing through)
  • adjustable fl ushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic fl ushing after each 6 hours non-use
  • possibility to regulate a water fl ow by the angle valve
  • radar fl ushing unit recharges a water to the siphon after each fl ushing
Code SLP 35Z
Order number 01351

Supply specification

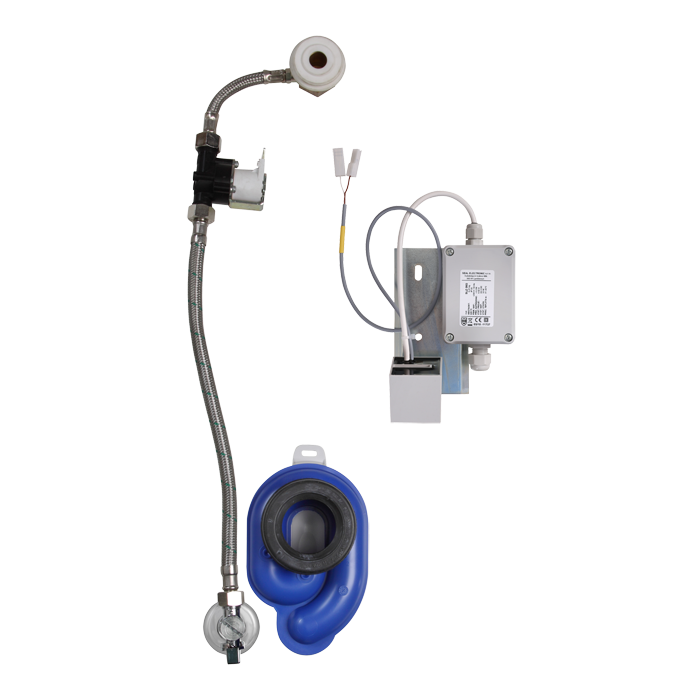

SLP 35Z - Supply No. 01351 - radar fl ushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with fi lter and check valve, inlet fi tting with a rubber sealing, siphon, drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fi tting with a rubber sealing
