SLP 33RZ

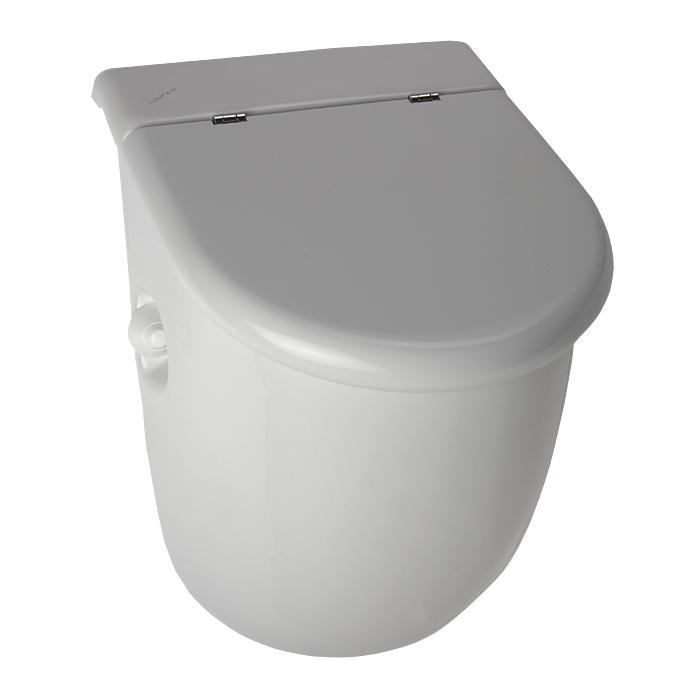

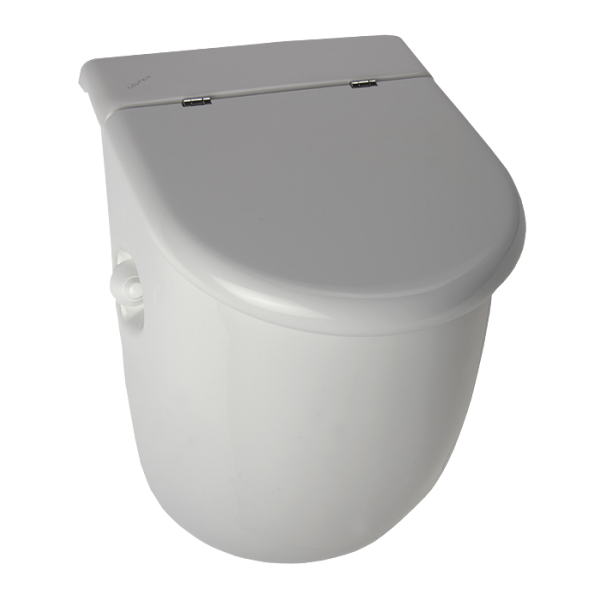

Urinal Casa with cover with a radar flushing unit and integrated power supply, 230 V AC

Characteristics

  • economy flushing by 1 liter of water
  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • Order number: 01335
I am interested in more information:

Supply specification

SLP 33RZ - Supply No. 01335 - ceramic urinal with the radar flushing unit, plastic mounting box with a brass screw coupling, electromagnetic valve and angle valve, inlet fitting with a rubber sealing, siphon, power supply

Technical information

Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
