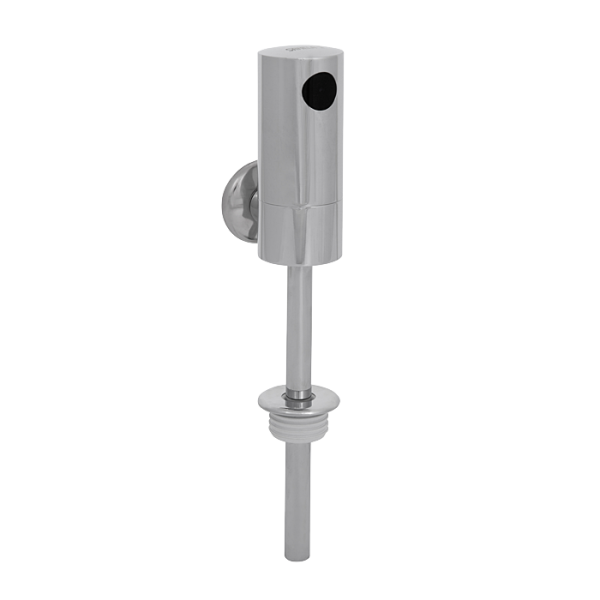

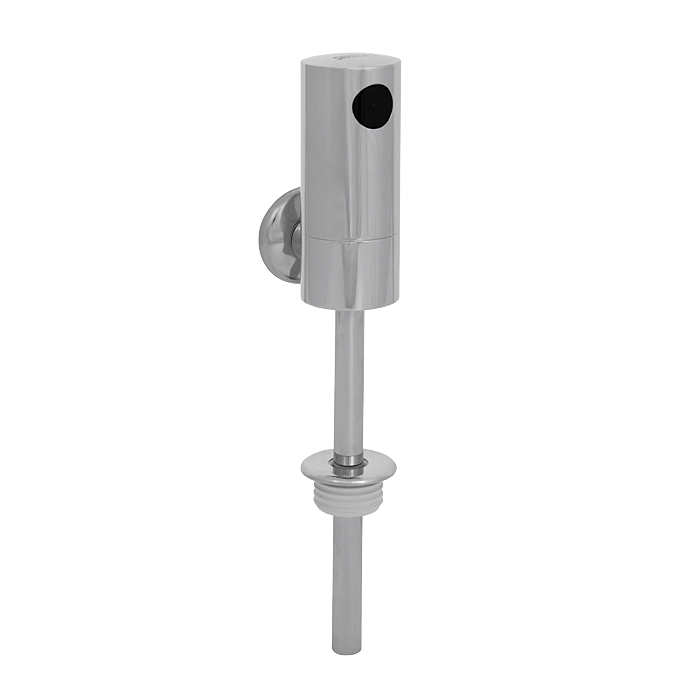

SLP 09K

Wall-mounted battery operated urinal infra-red flushing unit, chrom, 9 V

Characteristics

for urinals with upper inlet
system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 03
automatic hygiene flushing after 24 hours non-use
monitoring of battery capacity
water flow could be regulated by ball valve

Order number	01092
Code	SLP 09K

Supply specification

SLP 09K - Supply No. 11022 - chromed body with electronics, cartridge valve, ball valve with brass screw coupling, stainless steel cover, waste pipeline, rubber sealing, alkaline battery SLA 29

Technical information

Dimension of the flushing unit body: 40 x 50 mm
Operating voltage: 9 V
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf.data)
Water inlet: male thread G 1/2“
Water outlet: stainless steel tube with outer diameter 15 mm
Length of the tube: 205 mm
