SLP 03NZ

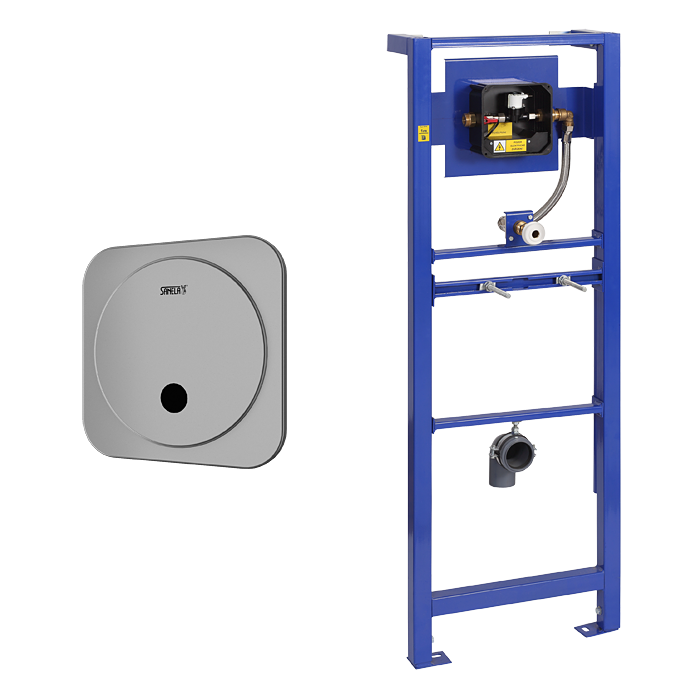

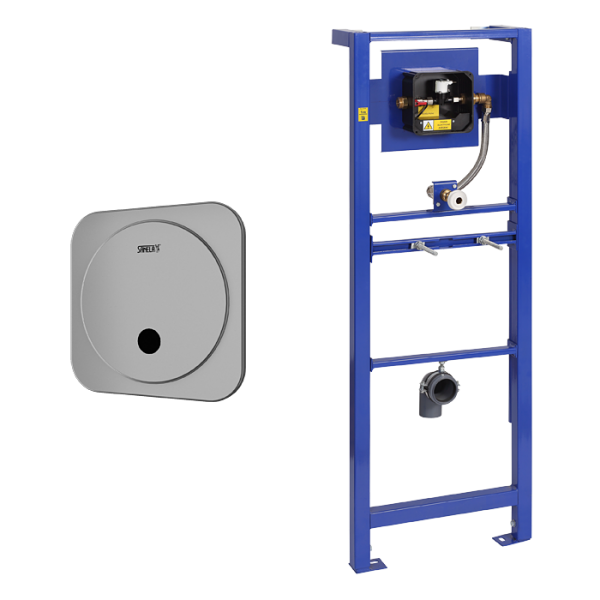

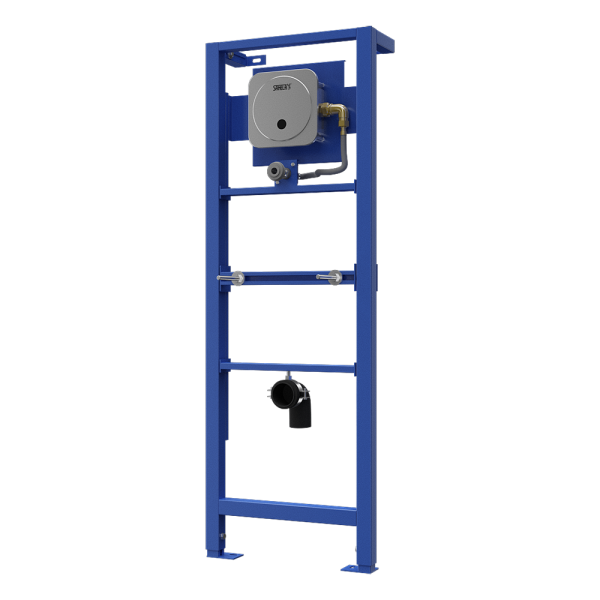

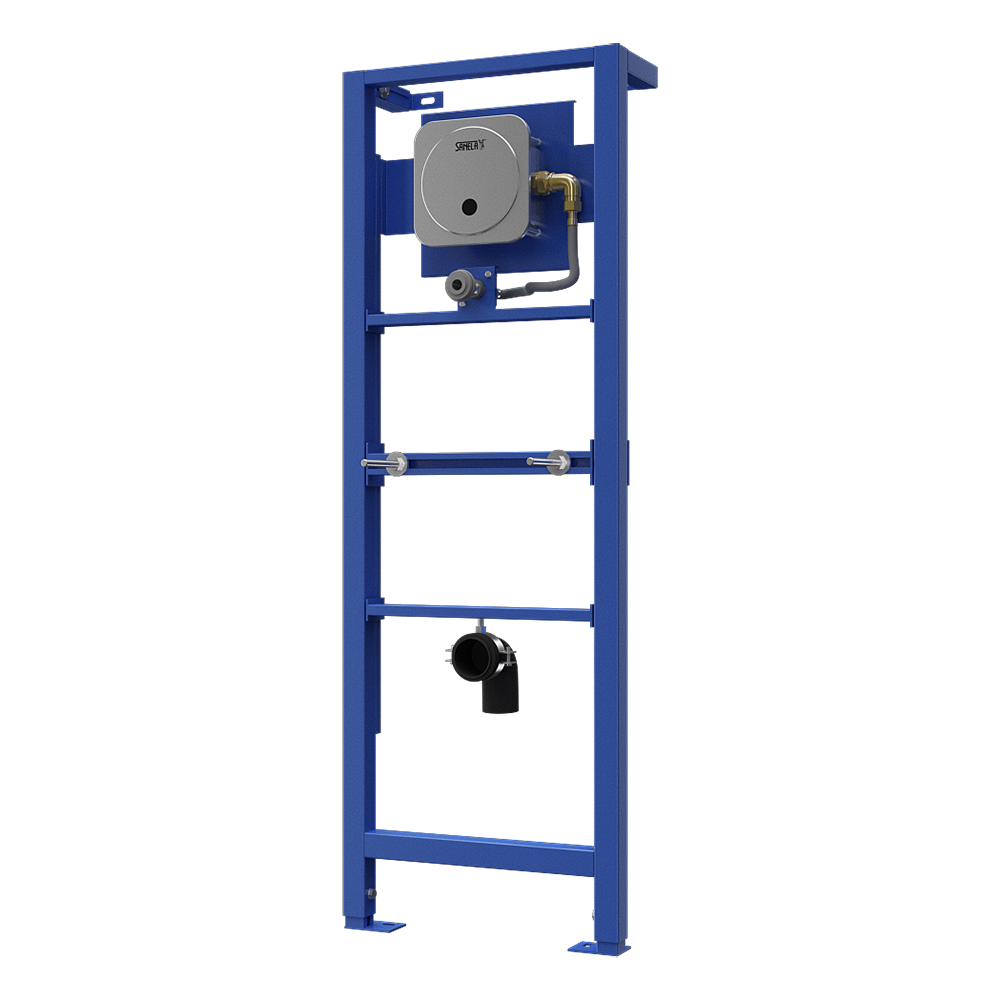

Set of SLP 02NZ and SLR 22, connection included, 230 V AC
Characteristics
- including pre-installed mounting frame SLR 22
- is destined for plasterboard constructions or for mounting to the floor and to the back wall
- metal frame construction with surface finishing - blue powder coated
- mounting screws M10 and М8, waste pipe holder with the elbow pipe Ø 50 mm and watter inlet G 1/2“
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time from 0,5 to 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
- Order number: 01036
I am interested in more information:
Supply specification
SLP 03NZ - Supply No. 01036 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply, connecting flexi hose, inlet fitting with a rubber sealing, mounting frame SLR 22
Technical information
Power supply: | 230V AC |
Location: | above the urinal |
Flushing unit: | without urinal |
Control: | infra-red |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 140 x 140 x 75 mm |
Mounting frame dimensions: | 1120 - 1290 x 410 x 155 - 235 mm |
Operating voltage: | 230 V AC/50 Hz |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 3/4“ |
Water outlet: | inlet fitting with a rubber sealing |
