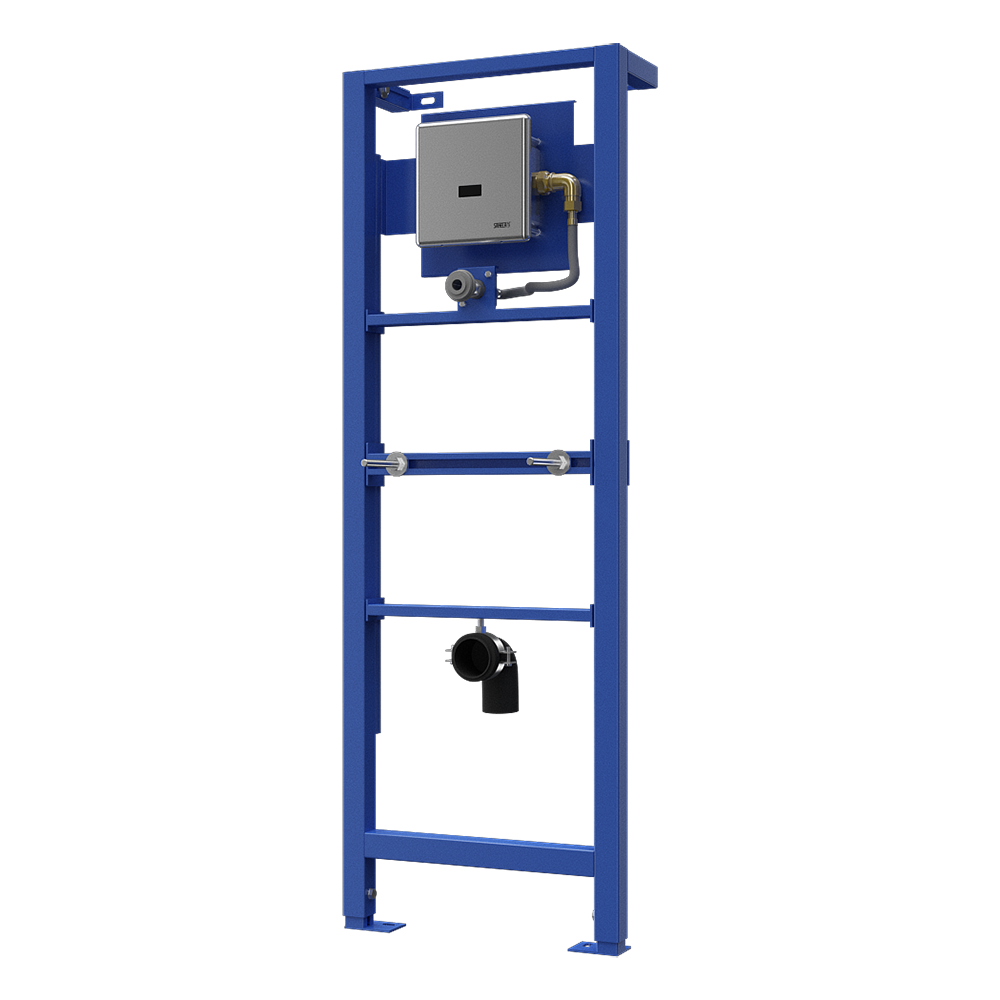

SLP 03KZX

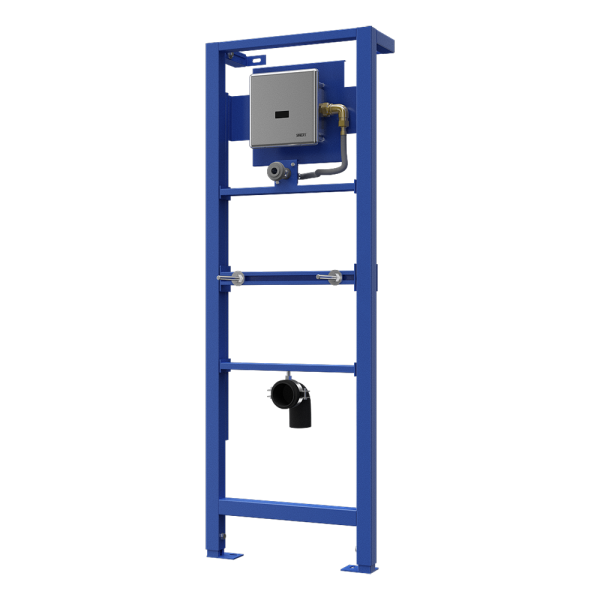

Set of SLP 02KZX and SLR 22, brushed, 230 V AC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- including mounting frame SLR 22
- frame designed for plasterboard structures, for anchoring to the floor and to the rear wall
- metal frame structure with blue surface finish powder coating
- mounting screws M10 and M8, waste holder with elbow Ø 50 mm and water inlet G 1/2"
- responds to the presence of a person in front of the urinal at a distance max 0.7 m from the sensor for longer than 7.5 s
- flushing occurs after the person leaves the detected zone
- flush time is adjustable from 0.5 to 15.5 s
- parameter settings and communication with the electronics via Sanela control app (Bluetooth) or the SLD 03
- automatic flushing 24 hours after the last valve activation
- possibility to regulate water flow with a ball valve
- brushed finish
- Order number: 11031
- EAN: 8591385110313
I am interested in more information:
Supply specification
SLP 03KZX - Supply No. 11031 - stainless steel cover with electronics including Bluetooth module, plastic mounting box with screw connection, solenoid valve and ball valve, power supply, connecting flexible hose, outlet fitting with a rubber seal, mounting frame SLR 22
Technical information
| Stainless steel cover dimensions: | 170 x 170 x 10 mm |
| Mounting box dimensions: | 140 x 140 x 75 mm |
| Frame dimensions: | 1120 - 1290 x 410 x 155 - 235 mm |
| Supply voltage: | 230 V AC/50 Hz |
| Power input: | 7 W |
| Range: | 0,6 - 0,75 m |
| Recommended working pressure: | 0.1 - 0.6 MPa |
| Flow rate: | 18 l/min (informative value) |
| Water inlet: | external thread G 3/4" |
| Water outlet: | outlet fitting with gasket |
Downloads
- Mounting instructions (7.07 MB)
- Catalogue list (165.65 kB)
Accessories
