SLKN 11

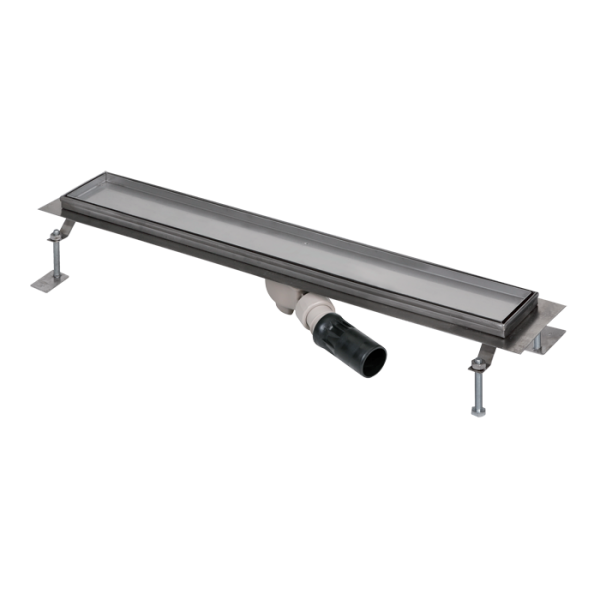

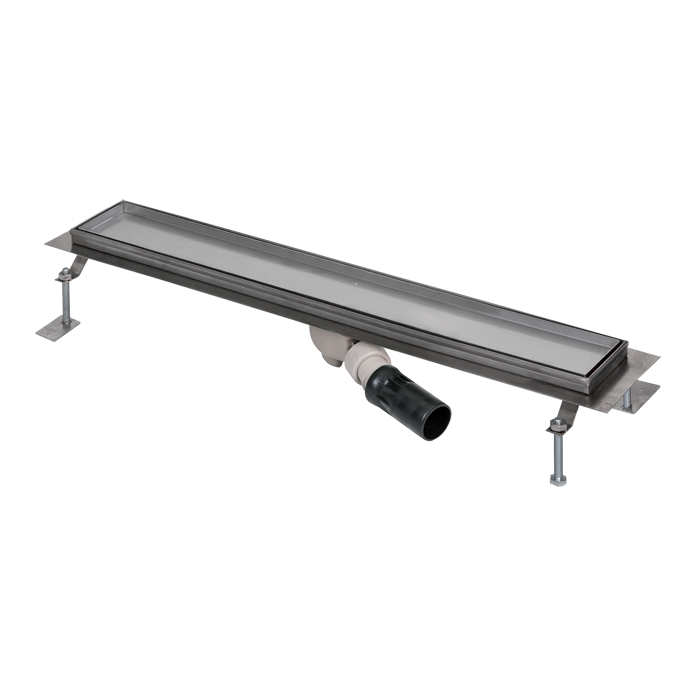

Bathroom floor drain for tiles insert, open space, lenght 1150 mm

Characteristics

BATHROOM DRAIN

  • length L = 1150 mm
  • collar serves for a tight and reliable connection to hydro-isolation
  • collar with the frame sealed up against the moisture
  • mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
  • 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
  • side bends for better stability
  • bond screw for connection with bonding conductor
  • different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
  • load class K3 (till 300 kg)
  • material AISI-304

WASTE OUTLET

  • plastic siphon DN 50 mm
  • according to the norm DIN EN 274; rate of flow 42 l/min
  • possibility od adjustment of the direction and the slope of the drain to 20°
  • different siphon positions could be made to order
  • Order number: 69110

Supply specification

SLKN 11 - Supply No. 69110 - drain, stainless steel tub (for tiles insert, max. height of tiles 12 mm - drain for higher tiles could be made to order), siphon, mounting legs with M10 screw (4 pcs.), tool for grid remove, waterproofing tape, mounting set

Technical information

type: bathroom
length: 1150 mm
installation: for tiles insert in open space
