SLR 03Z

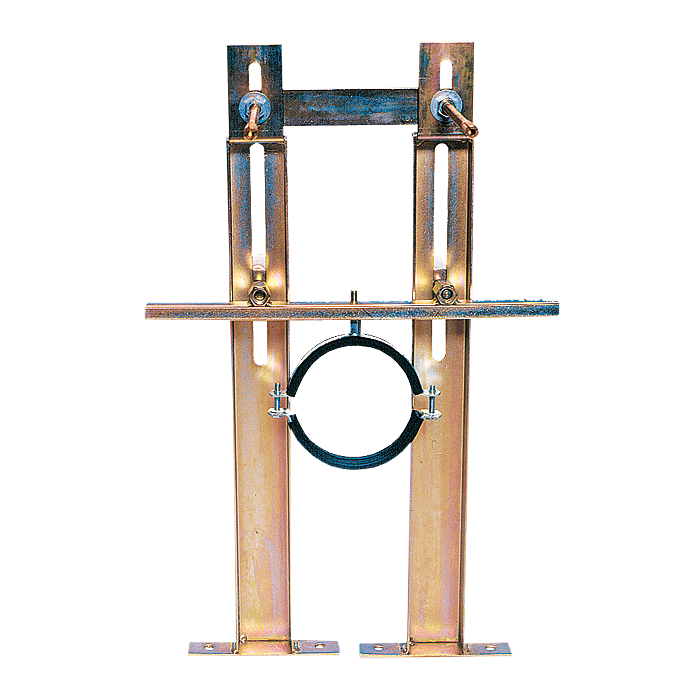

Mounting frame to the wall for a hanging toilet

Characteristics

  • mounting frames are destined for a plasterboard constructions; it´s a possible to use them for distances between axes of CW profiles from 420 to 625 mm; surface finishing – yellow zinc-chromate; mounting to CW profiles per screws No. M8 with wing-nuts
  • frames are made for a montage of sanitary ceramics (urinals, washbasins, toilet bowls) and corresponding sanitary electronics equipment (automatic urinal or WC flushing unit) to the plasterboard wall
  • screw spacing for the urinal fixing is possible to adjust in accordance with the type of used urinal; holder of waste pipe is sliding in the vertical and horizontal movement
  • all screws for toilet bowl´s  fixing is possible heightly adjust by fixed spacing 180 or 230 mm; single part for the fastening of stainless steel cover with sensor must be mounted so high so uncovered WC seat shall not dim peephole of sensor
Order number 08033
Code SLR 03Z

Supply specification

SLR 03Z - supply No. 08033 - mounting frame to the brick wall for wall hung toilet and flushing unit placed above the toilet (SLW 01NK)
