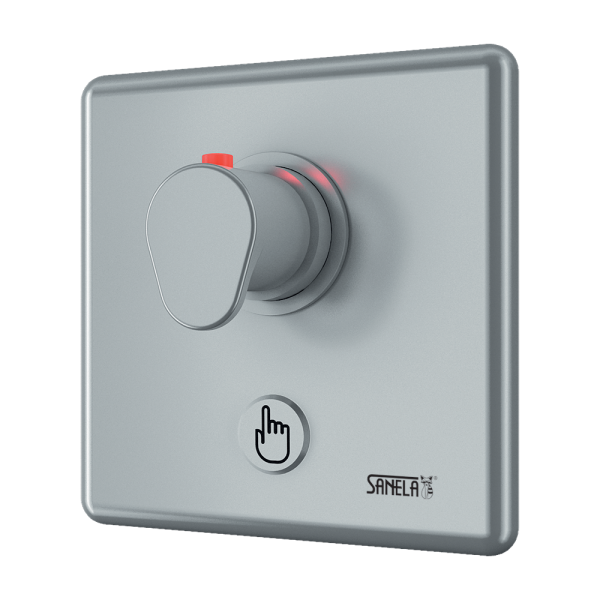

SLS 02PTB
Piezo shower control with thermostatic mixer for cold and hot water, 6 V
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- hygienic flush
- vandal-proof
- SLS 02PT, SLS 02PTB are destined for cold and hot water, temperature is regulated by thermostatic mixer
- safety fuse against scalding
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- monitoring of battery capacity
- parameter adjustment using by the remote control SLD 04
- Order number: 12025
I am interested in more information:
Supply specification
SLS 02PTB - Supply No. 12025 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and thermostatic mixer, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
Material: | stainless steel |
Temperature regulation: | with thermostat |
Power supply: | battery operated |
Control: | piezo |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 150 x 160 x 65 mm |
Operating voltage: | 6 V |
Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min. (inf. data) |
Water inlet: | male thread G 3/4“ |
Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (4.33 MB)
- Catalogue list (411.61 kB)
- 2D Drawing (227.15 kB)
