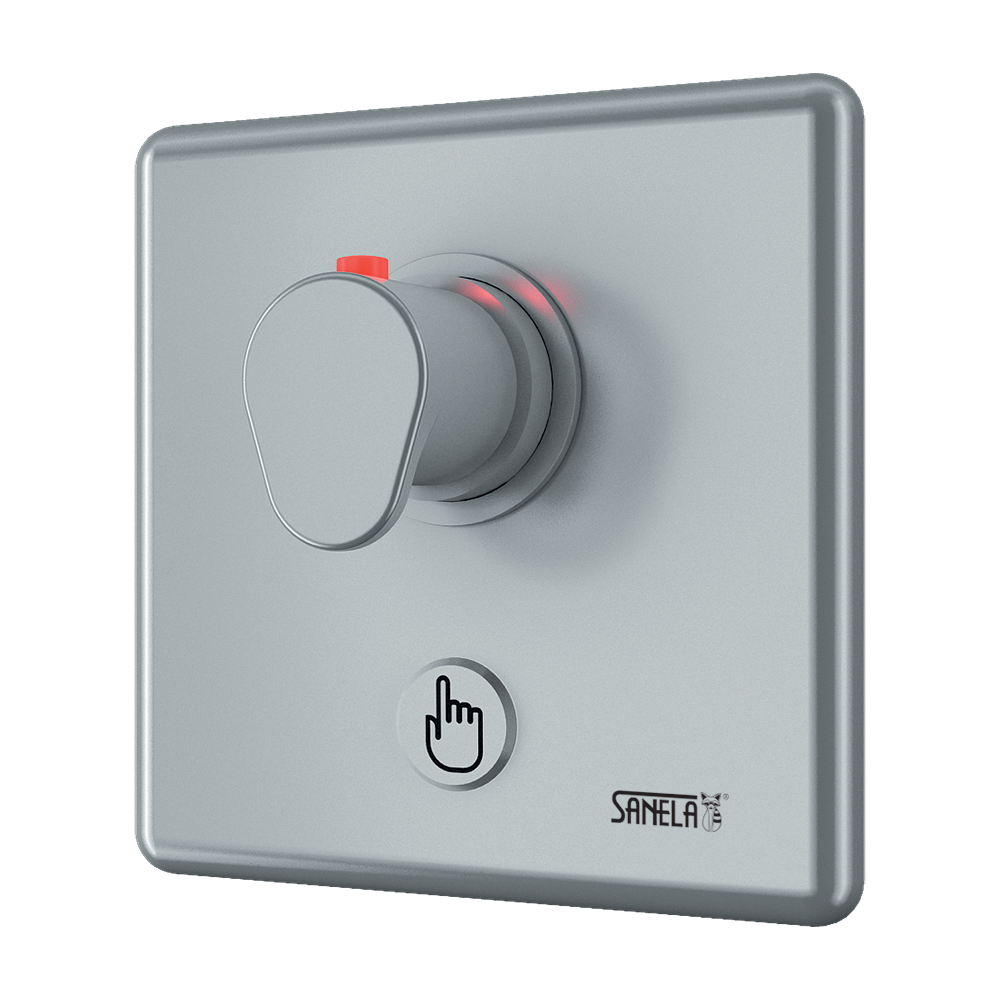

SLS 02PT

Piezo shower control with thermostatic mixer for cold and hot water, 24 V DC

Characteristics

  • hygienic flush
  • vandal-proof
  • SLS 02PT, SLS 02PTB are destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • Order number: 12024

Supply specification

SLS 02PT - Supply No. 12024 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and thermostatic mixer

Technical information

material: stainless steel
temperature regulation: with thermostat
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 160 x 65 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“

Downloads

Accessories

Vandal-proof shower head
Vandal-proof shower head, adjustable…
Vandal-proof shower head
Vandal-proof shower head
Vandal-proof shower head
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
