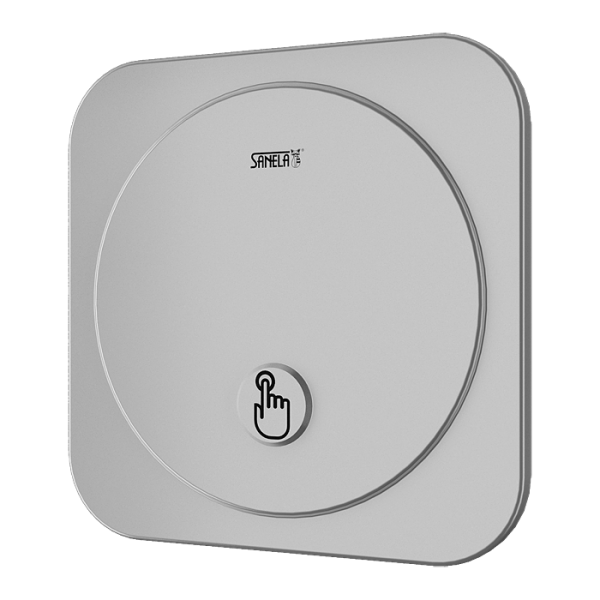

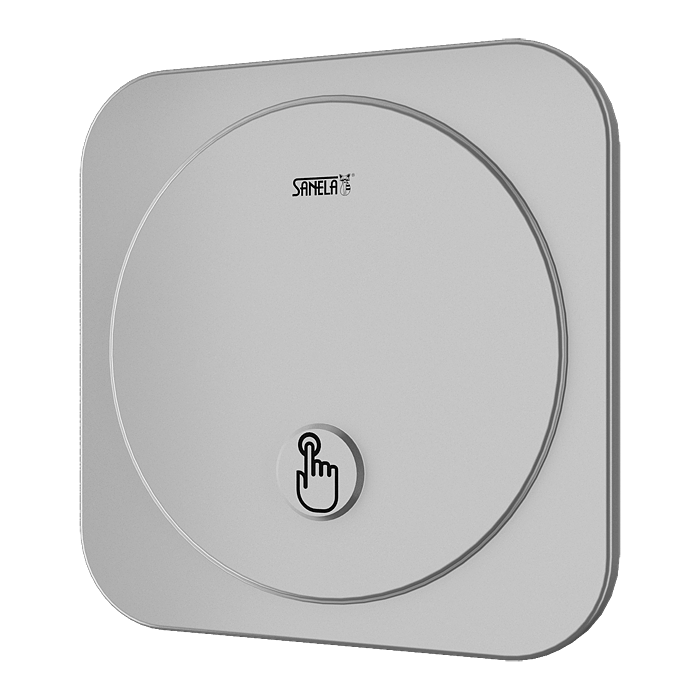

SLS 01NPB
Piezo shower control for cold or premixed water, 6 V
Characteristics
- hygienic flush
- vandal-proof
- is destined for cold or premixed water
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- monitoring of battery capacity
- parameter adjustment using by the remote control SLD 04
- Order number: 22017
I am interested in more information:
Supply specification
SLS 01NPB - Supply No. 22017 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Control: | piezo |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.64 MB)
- Catalogue list (178.56 kB)
- 2D Drawing (123.82 kB)
