SLZA 32T

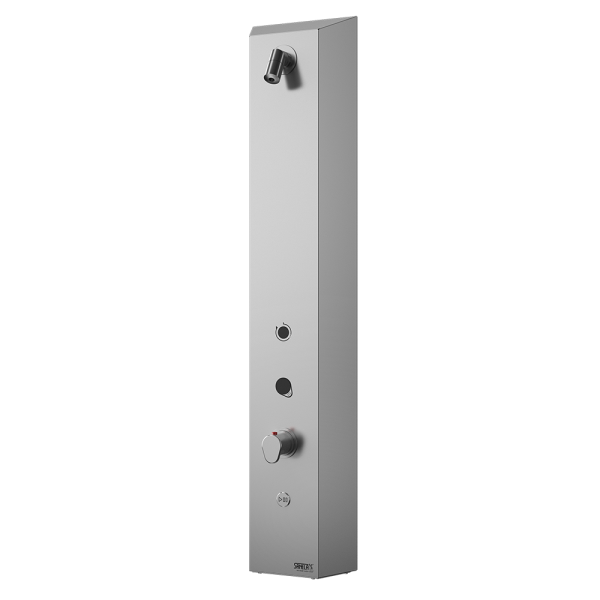

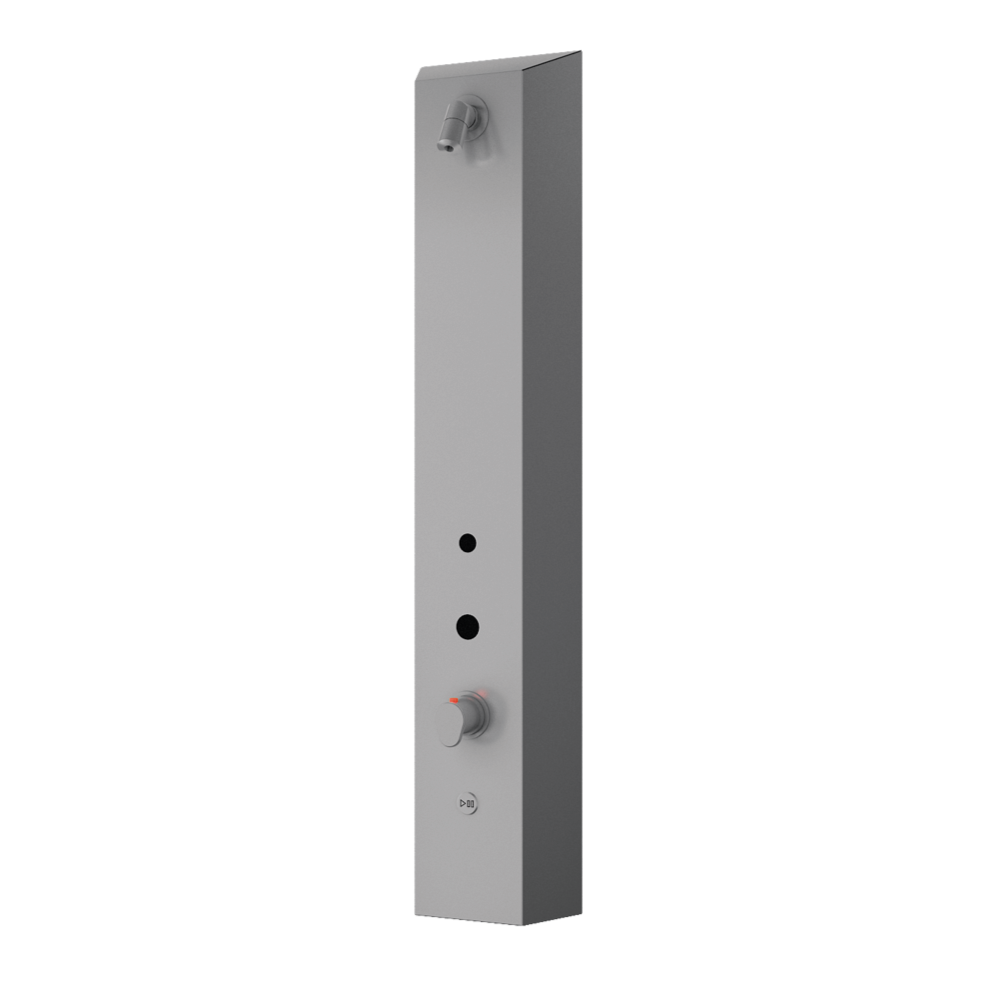

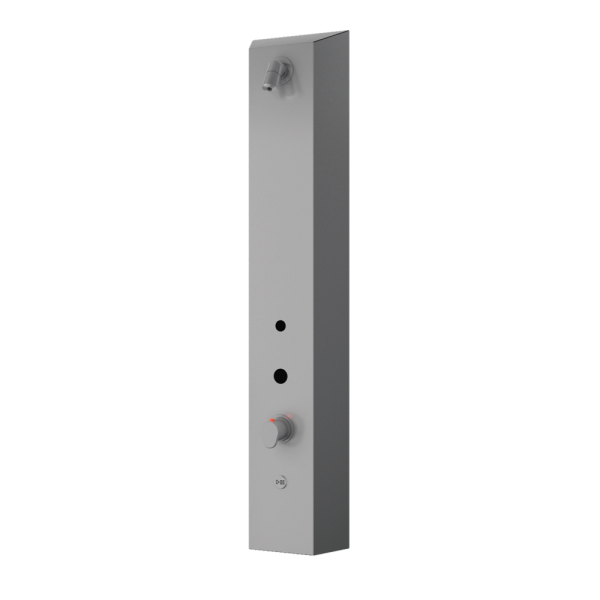

Stainless steel RFID token shower panel, with thermostatic mixer for cold and hot water, 24 V DC

Characteristics

  • hygienic flush
  • stainless steel RFID token wall hung panels with integrated mechanical control of water and reader of RFID tokens SLZA 51
  • SLZA 32T is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • when a charged RFID token is attached to the reader, it is indicated by flashing the red diode
  • system reacts on the push of the button by immediate water flow and lighting on the ten red diods, which with gradual lighting off counts down the shower time
  • the user can start and stop the water directly in the shower
  • 30 % of the time paid before the end of the water supply, the user is notified by interruption of the water flow
  • after reattaching the token during the shower, the whole sequence restarts
  • parameter adjustment using by the setting token
  • material AISI - 304
  • brushed finish
  • Order number: 89320
I am interested in more information:

Supply specification

SLZA 32T - Supply No. 89320 - stainless steel shower planel with electronics and credit value reader on token, shower head with a possibility to set an angle of water flow, electromagnetic valve (1 pc.), thermostatic mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 9 l/min. (inf. data)
Water inlet: male thread G 1/2"
