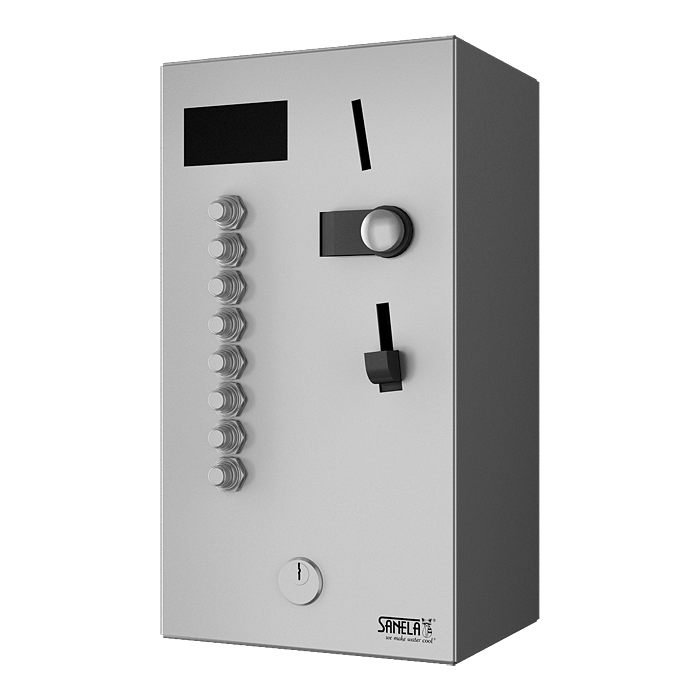

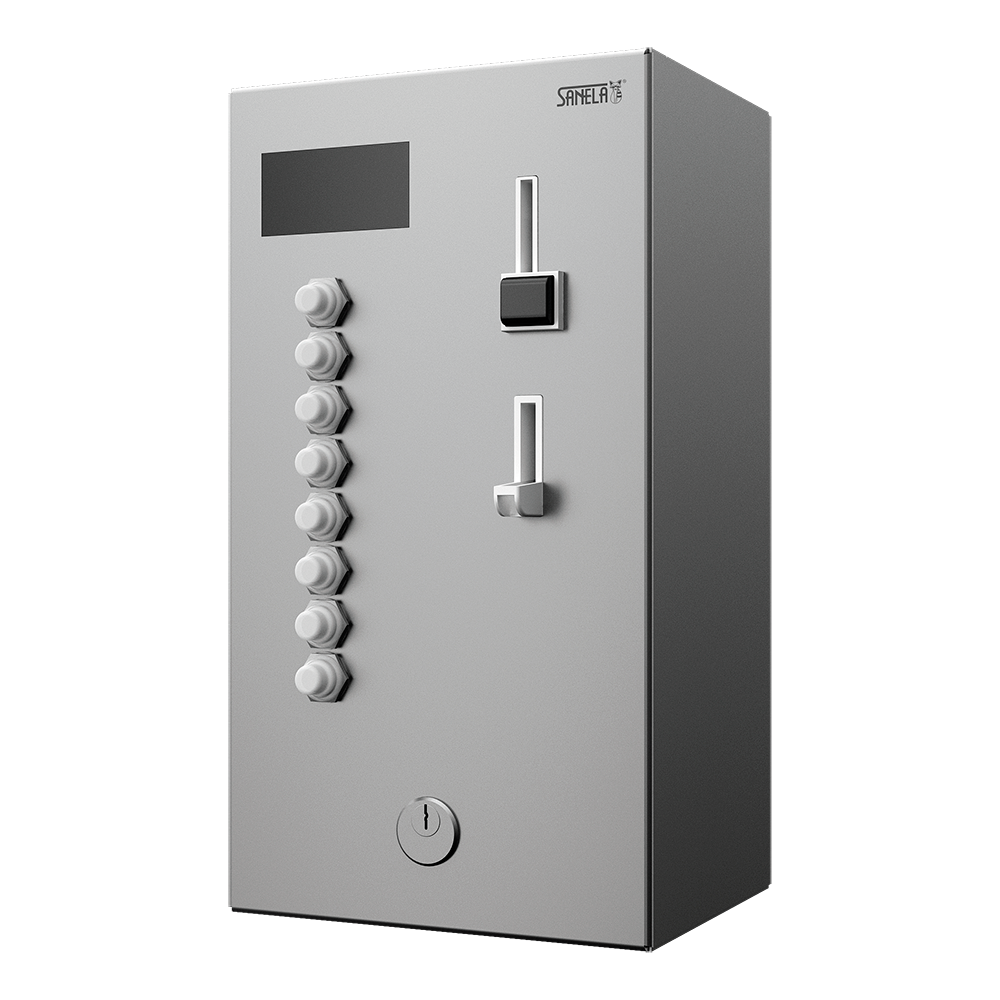

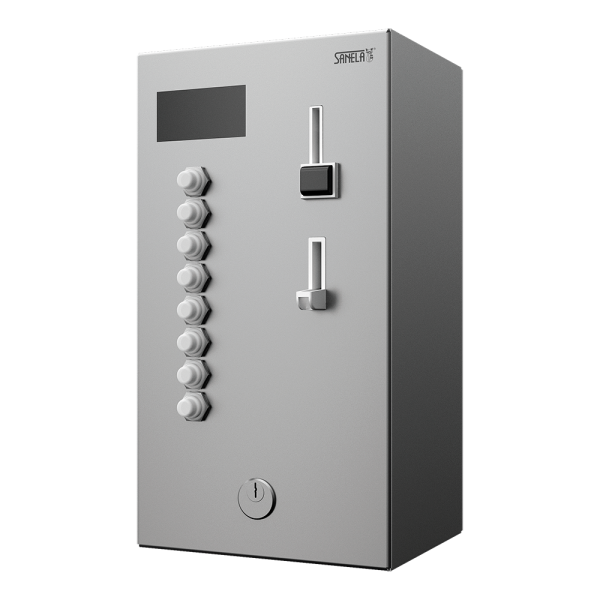

SLZA 04L
Coin and token machine for two to eight single-phase appliances 230 V, choice by the user, 24 V DC
Characteristics
- vandal-proof
- choice of appliance by the user
- before inserting a coin or token the user chooses the requested appliance, the number of appliance is shown on the display, the machine switches on the contactor of single-phase appliance (e. g. washing machine) for paid time
- during use is possible to add the coins or tokens and pro long use time
- parameters adjustment using by the remote control SLD 05 (appliance running time according to the thrown coin or token, time value, current euro exchange, token value, display contrast, possibility turn off one from appliances)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- could be made to order from stainless steel AISI - 316L
- brushed finish
- Order number: 88040
I am interested in more information:
Supply specification
SLZA 04L - Supply No. 88040 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.)
Technical information
| Installation: | wall hung |
| Operating voltage: | 24 V DC |
| Types of coins: | 5, 10, 20 and 50 CZK, 1 and 2 EUR, metal token |
| Delay time for paid 5 CZK: | 30 s - 16 h, standard 30 s |
| Maximal power input of contactor: | 4 kW |
Downloads
- Mounting instructions (1.52 MB)
- User guide (29.11 kB)
- Catalogue list (330.31 kB)
- Circuit diagram (1.85 MB)
