SLWN 18ZPP

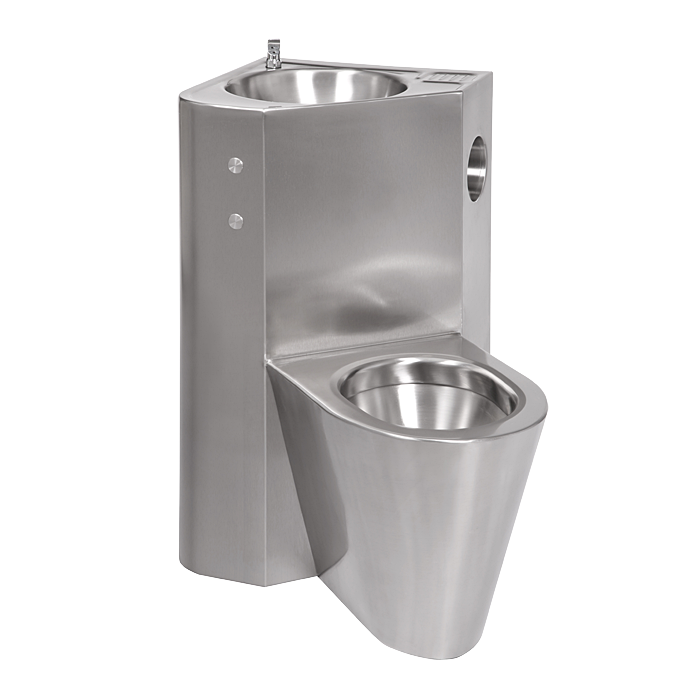

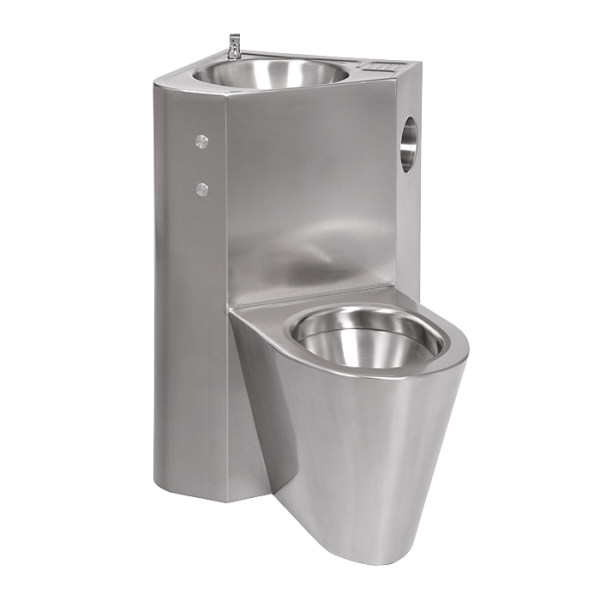

Vandal-proof piezo corner combination unit, hanging toilet on the right side

Characteristics

  • vandal-proof
  • suitable for prison
  • piezo corner combination with toilet, washbasin, washbasin spout and a toilet paper hole
  • piezo button for washbasin spout
  • piezo button for toilet flushing
  • SLWN 18ZPP - hanging toilet on the right side
  • filled with expanded polyurethane (to avoid dents and typical metal noise)
  • rear assembling through the service hatch
  • water flows (or flushing the toilet) after soft push of the piezo button
  • water stops flowing after adjustable flowing time (by washbasin can be set in 2 - 62 s, standard 10 s and by toilet can be set in 0,5 – 15,5 s, standard 8 s)
  • water could be stopped by follow-up soft push of piezo button
  • automatic hygiene flush after each eight flush or 24 hours non using of toilet
  • parameters adjustment by remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 94187
I am interested in more information:

Supply specification

SLWN 18ZPP - Supply No. 94187 - stainless steel combination unit with toilet and washbasin, piezo electronics (2 pcs.), washbasin spout, mounting set

Technical information

Combi unit type: corner
Combi unit type: with piezo
Toilet type: hanging
Installation: wall hung
Category: combination unit
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1″
