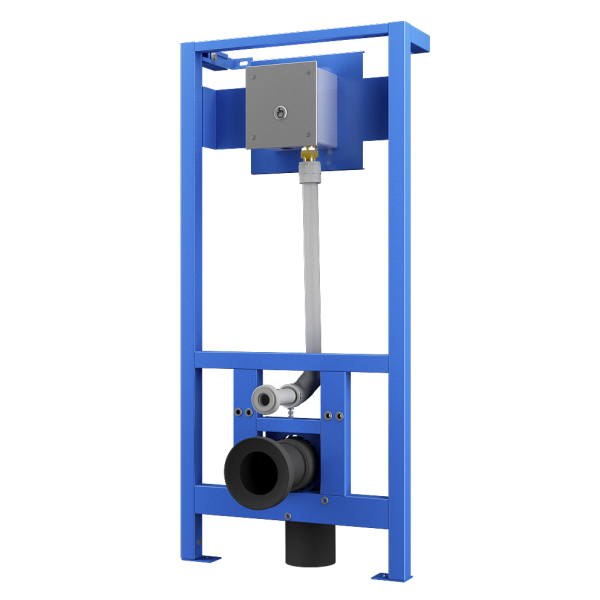

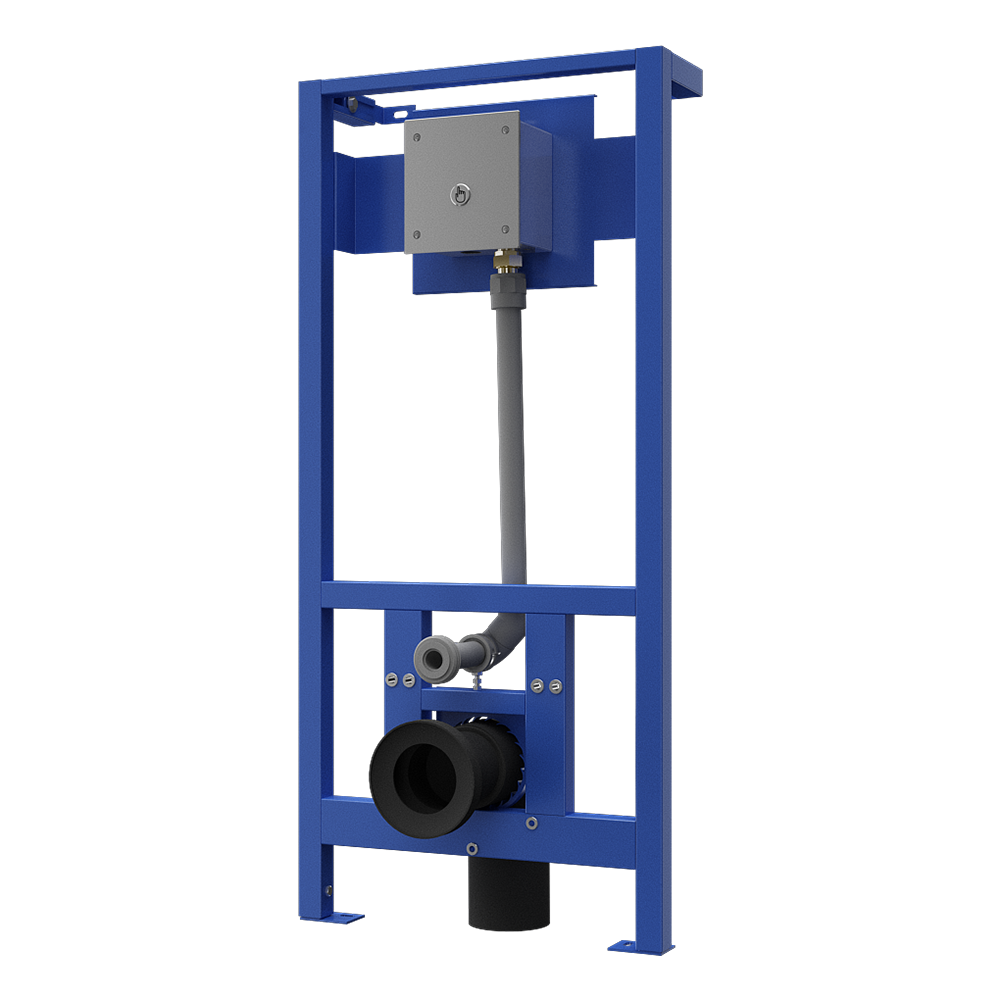

SLW 10PA
Set of SLW 01PA and SLR 03, 24 V DC
Characteristics
- vandal-proof
- suitable for a prison
- including pre-installed mounting frame SLR 03
- is destined for the brick wall
- five-point system for fixing of stainless steel toilets
- metal frame construction with surface finishing - blue powder coated
- mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
- special vandal-proof stainless steel cover, thickness 3 mm, safety screws
- toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
- water flows after soft push of the piezo button
- adjustable flushing time 0,5 - 15,5 s, standard 8 s
- automatic hygiene flush after each eighth flush or 24 hours non using of toilet
- parameters adjustment by remote control SLD 04
- Order number: 04105
I am interested in more information:
Supply specification
SLW 10PA - Supply No. 04105 - stainless steel cover with piezo electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, TORX screws (4 pcs.), mounting frame SLR 03
Technical information
| Flushing type: | for a pressured water |
| Material: | stainless steel |
| Power supply: | 24V DC |
| Control: | piezo |
| Stainless steel cover dimension: | 160 x 170 x 3 mm |
| Mounting box dimension: | 150 x 150 x 100 mm |
| Mounting frame dimensions: | 1120 - 1290 x 510 x 155 - 235 mm |
| Operating voltage: | 24 V DC |
| Power input: | 7 W |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16) male thread G 1′′ |
| Water outlet: | male thread G 1“ |
