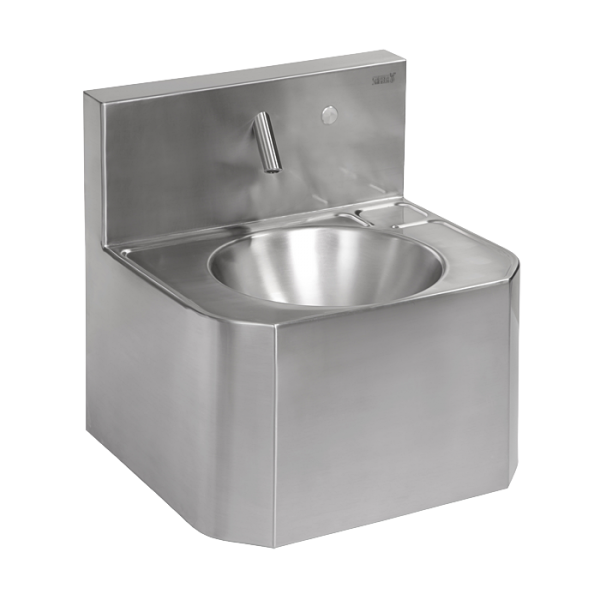

SLUN 71P
Vandal-proof stainless steel piezo wall-mounted washbasin, for cold or premixed water, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel wall hung washbasin with piezo electronics and special anti-suicide spout
- SLUN 71P - is destined for cold a premixed water
- rear assembling through the service hatch
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 93717
I am interested in more information:
Supply specification
SLUN 71P - Supply No. 93717 - stainless steel washbasin with piezo electronics and spout, electromagnetic valve (1 pc.), angle valve with filter (1 pc.), connecting hoses, siphon, mounting set
Technical information
| Temperature regulation: | for cold or premixed water |
| Power supply: | 24V DC |
| Installation: | wall hung |
| Category: | washbasin |
| Control: | piezo |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.52 MB)
- Catalogue list (241.82 kB)
- 2D Drawing (244.03 kB)
