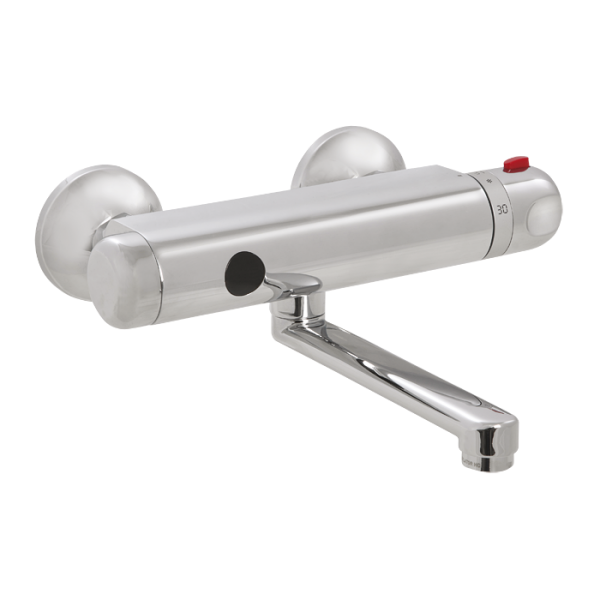

SLU 25S

Wall-mounted thermostatic mixer, 24V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • suitable for medical facilities
  • function of automatic water stop after 5 minutes of continuous flow
  • mixers are destined for cold and hot water, water temperature is regulated by automatic thermostatic mixer, pressure of hot and cold water must be the same
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from 0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • safety fuse against scalding
  • START/STOP program
Order number 33258
Code SLU 25S

Supply specification

SLU 25S - supply No. 33258 - chromium-plated faucet with an integrated electronics; built-in thermostatic mixer and electromagnetic valve (1 pc.); regulating tap connection (2 pcs.); chromium-plated cover (2 pcs.); swivel spout (chromium-plated); filter (2 pcs.)

Technical information

Operating voltage: 24V DC
Active range: standard 0,07 - 0,4 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
Water outlet: swivel spout
Temperature regulation: by automatic thermostatic mixer
