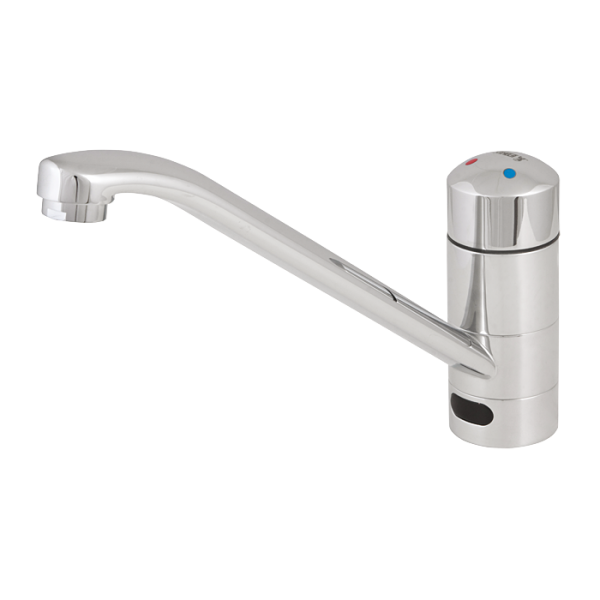

SLU 23DB

Washbasin and sink mixer with elongated spout, 9V

Characteristics

  • SLU 03D, SLU 23D haven´t got a swivel outlet spout (movable outlet spout could be made to order)
  • function of automatic water stop after 5 minut of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from  0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • washbasin mixers are destined for cold and hot water, temperature is regulated by an integrated mixer (ceramic cartouche)
  • monitoring of battery capacity
  • START/STOP program
Order number 13232
Code SLU 23DB

Supply specification

SLU 23DB - supply No. 13232 - tap with battery operated electronicsand built-in mixer, electromagnetic valve (2 pcs) connecting hoses, regulating angle valve with filter and non-return valve (2 pcs), lithium battery 9V DC

Technical information

Operating voltage: 9V
Active range:standard 0 - 0,3 m, START/STOP program 0,05 - 0,1 m
Flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
  • Print

Accessories

Lithium battery 9V/1200 mAh, type U9VL
Remote control for an adjustment of…
