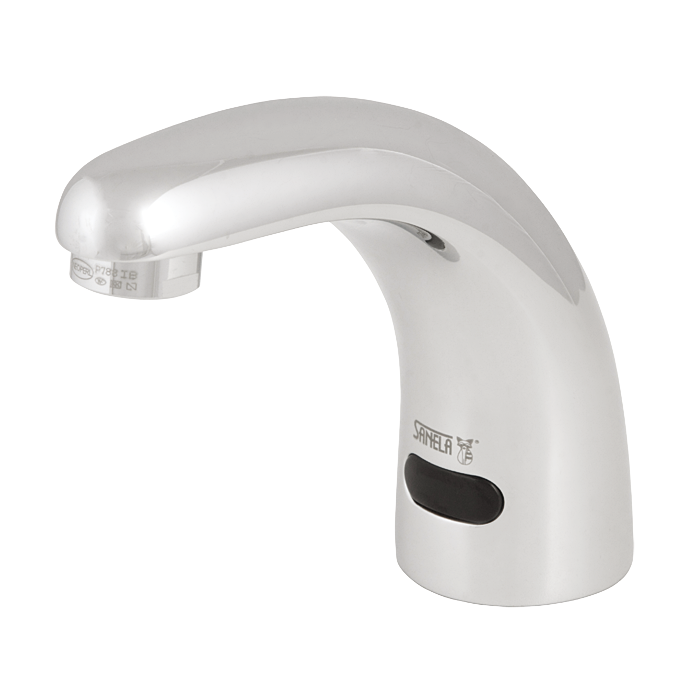

SLU 21B

Washbasin tap for cold or premixed water, 9V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minut of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from 0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 01N, SLU 01M and SLU 21 are destined for cold or premixed water
  • monitoring of battery capacity
  • START/STOP program
Order number 03215
Code SLU 21B

Supply specification

SLU 21B - supply No. 03215 - taps with battery operated electronics, electromagnetic valve (1 pc), connecting hoses, regulating valve with filter and non-return valve (1 pc), lithium battery 9V DC

Technical information

Operating voltage: 9V
Active range: standard 0 - 0,3 m, START/STOP program 0,05 - 0,1m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
  • Print

Accessories

Lithium battery 9V/1200 mAh, type U9VL
Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min…
Thermostatic mixing valve 1/2” (42l…
Thermostatic mixing valve 3/4" (43l/min…
Thermostatic mixing valve 1" (53l/min.)
Thermostatic mixing valve 5/4" (82l/min…
Thermostatic mixing valve 6/4" (155l…
