View category

SLU 12BR

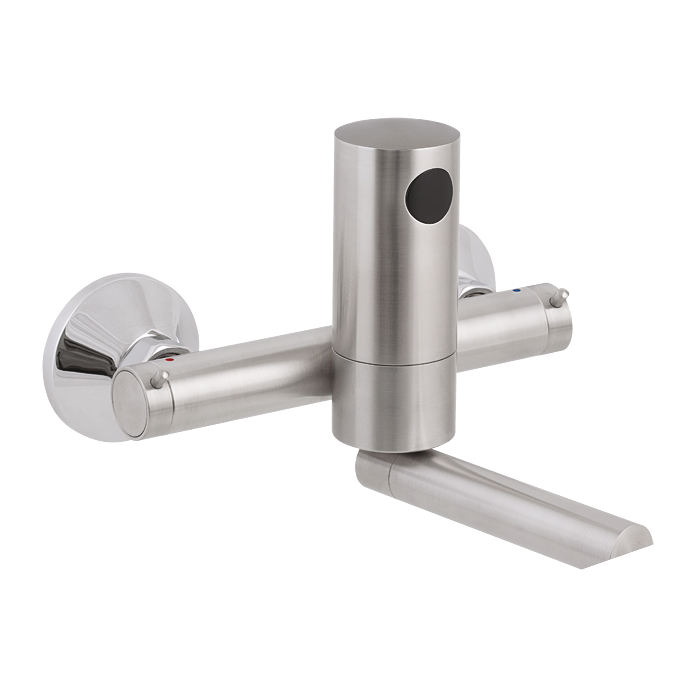

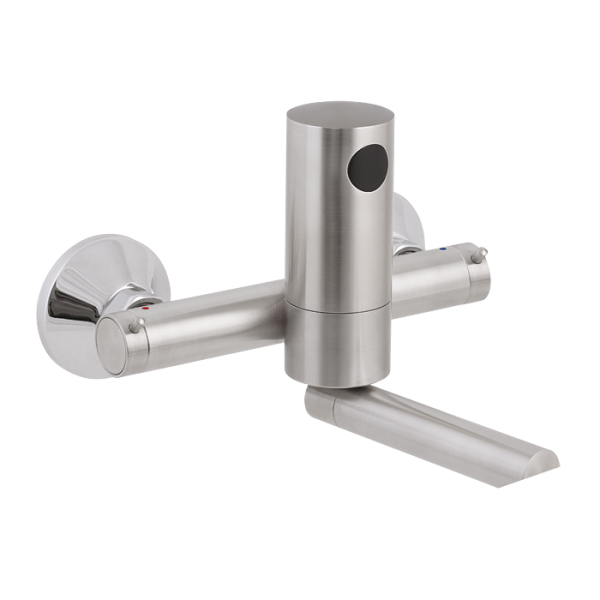

Wall-mounted tap for cold and hot water, water supply span 150 mm, 9 V

Wall-mounted tap for cold and hot water, water supply span 150 mm, 9 V

While stocks last

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • swivel spout
  • is destined for cold a hot water, temperature is regulated by regulation wheels
  • water is flowing as long as person is in the active range
  • water stops flowing after removal of person from the active range (can be set in range 0,25 - 7,75 s), standard 3 s
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 23126
I am interested in more information:

Supply specification

SLU 12BR - Supply No. 23126 - stainless steel faucet with electronics and electromagnetic valve, rosette (2 pcs.), chrome cap (2 pcs.), filter (2 pcs.), Allen key, lithium battery SLA 09 with battery case SLA 09

Technical information

Material: stainless steel
Temperature regulation: for cold and hot water
Power supply: battery operated
Control: infra-red
SLU 12BR: water inlet spacing 150 mm
Operating voltage: 9 V
Battery life: lithium 9V, type U9VL (approx. 2 years (100 uses per day)
Active range: standard 0,6 - 0,75 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 7 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Lithium battery, 9 V/1200 mAh
Remote control for an adjustment of…
