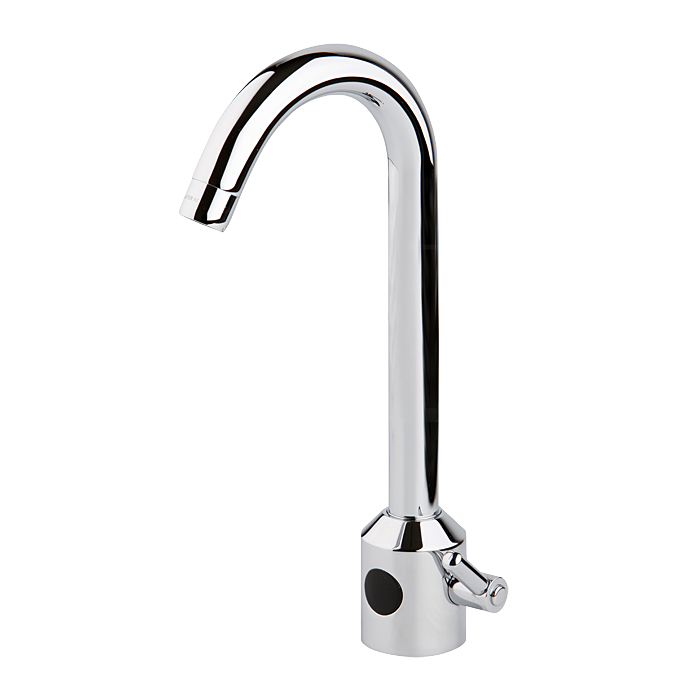

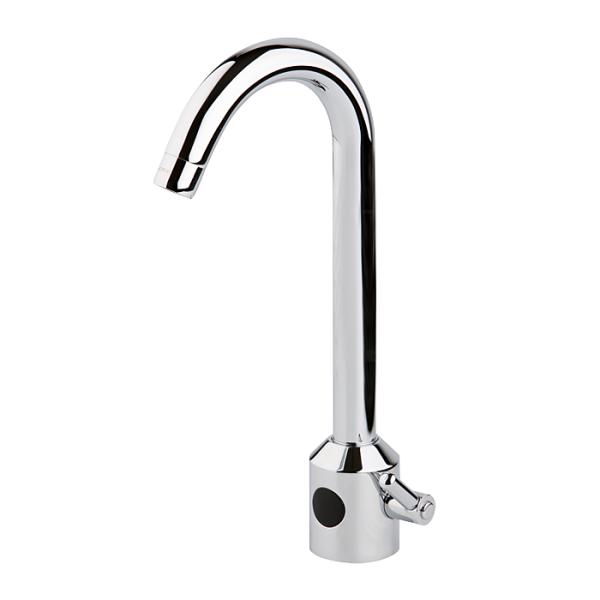

SLU 08NDB

Washbasin elongated mixer, 6V

Characteristics

  • suitable for medical facilities
  • vandal-proof aerator
  • two sizes of spouts: 205 mm - SLU 08(B), SLU 08N(B) and 250 mm - SLU 08D(B), SLU 08ND(B)
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from 0,25 to 7,75 sec.
  • function of automatic water stop after 5 minut of continuous flow
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 08N, SLU 08NB , SLU  08ND, SLU 08NDB are destined for cold and hot water, temperature is regulated by an integrated mixer
  • monitoring of battery capacity
  • START/STOP program
Order number 63089
Code SLU 08NDB

Supply specification

SLU 08NDB - supply No. 63089 - chromium-plated faucet with an integrated electronics; electromagnetic valve (2 pcs.); connecting hoses; angle valve with filter and non-return valve (2 pcs.), set of 4 pcs. of alcaline batteries

Technical information

Operating voltage: 6V
Active range: standard 0 - 0,3 m, START/STOP program 0,05 - 0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
  • Print

Accessories

Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
