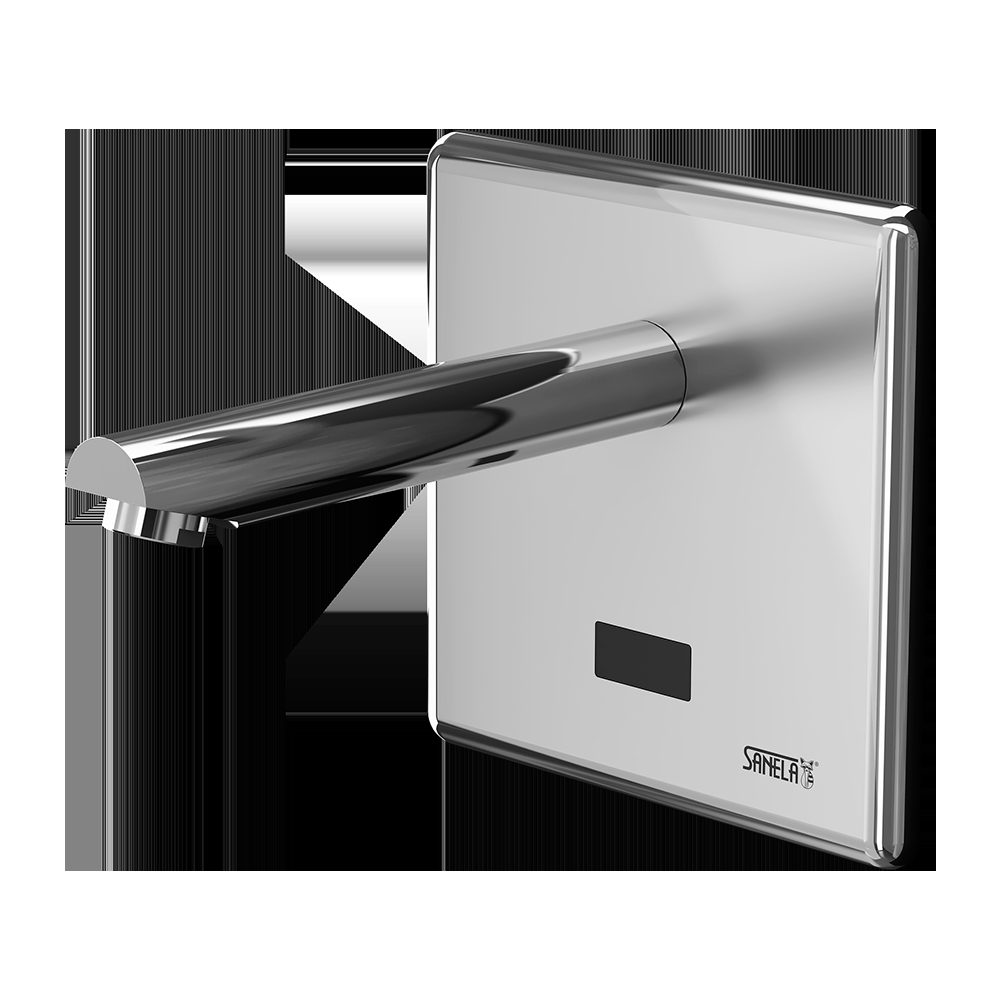

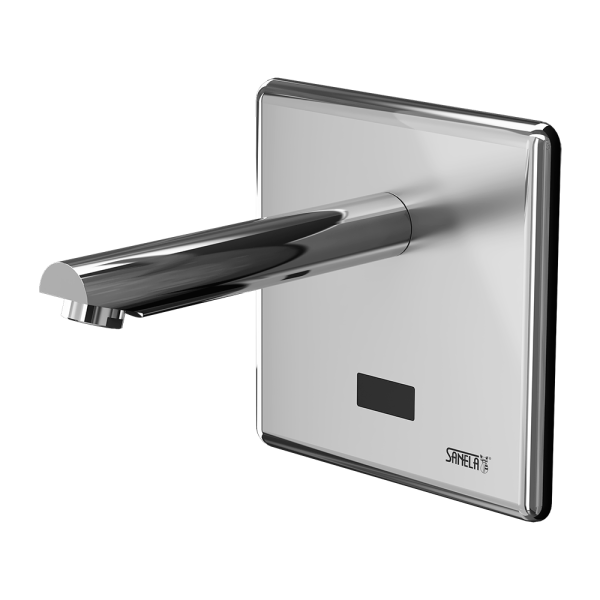

SLU 04H25

Wall-mounted tap, spout of 250 mm, 24V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • suitable for medical facilities
  • two sizes of spouts (lenght 170 and 250 mm)
  • function of automatic water stop after 5 minut of continuous flow
  • tap SLU 04H is destined for cold or premixed water
  • water temperature is regulated by automatic thermostatic mixer, pressure of hot and cold water must be the same
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • adjustable time delay from 0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • water flow could be regulated by ball valve
  • START/STOP program
Order number 03042
Code SLU 04H25

Supply specification

SLU 04H25 - supply No. 03042 - stainless steel cover with integrated electronics; plastic mounting box with electromagnetic valve (1 pc.), ball valve and brass-screw coupling, spout 250 mm

Technical information

Stainless steel cover dimension: 174 x 219 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24V DC external
Active range: standard 0 - 0,3 m, START/STOP program 0,05 - 0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4˝
