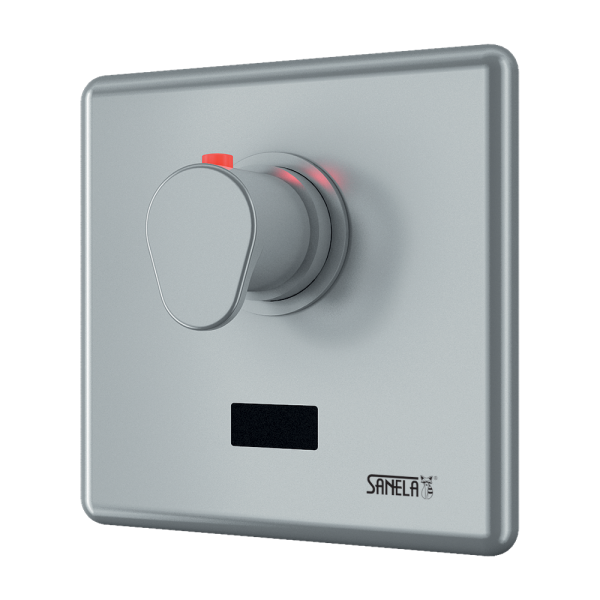

SLS 02T

Shower control with thermostatic mixer, 24 V DC

Characteristics

  • hygienic flush
  • SLS 02T are destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • water is flowing as long as an user is in the active range
  • water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 3 s
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 02023
I am interested in more information:

Supply specification

SLS 02T - Supply No. 02023 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and thermostatic mixer

Technical information

Material: stainless steel
Temperature regulation: with thermostat
Power supply: 24V DC
Control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 160 x 65 mm
Operating voltage: 24 V DC
Active range: standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
