SLP 17B

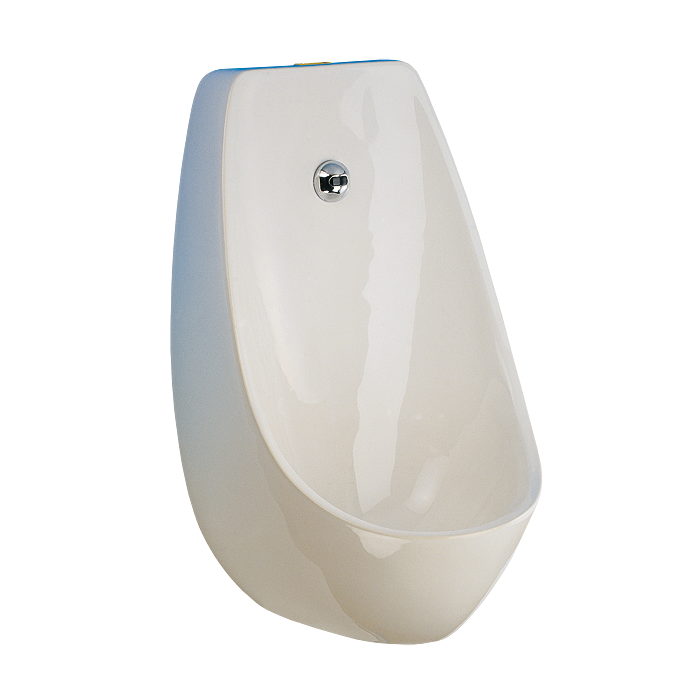

Urinal Domino with infra-red flushing unit, 6 V

Characteristics

  • ceramic urinal Domino with an integrated flushing unit
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 sec.
  • water flows after leaving active range
  • adjustable flushing time from 0,5 to 15,5 seconds
  • parameters adjustment by SLD 03 remote control
  • function switch ON/OFF
  • automatic hygiene flushing after 24 hours non-use
  • monitoring of capacity of operating battery
Order number 11176
Code SLP 17B

Supply specification

SLP 17B - supply No. 11176 - ceramic urinal DOMINO; chromium-plated shower head with the jet and with an integrated sensor; electromagnetic valve ;battery operated electronics; angle valve with a filter; connecting hose; mounting set; set of 4 pcs. of alcaline batteries; delivered without a siphon!

Technical information

Operating voltage: 6 V
Active range: 0,3 - 0,7 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Water outlet: shower head in the urinal
  • Print

Accessories

Plastic urinal screen orange colour - mango…
Plastic urinal screen red colour - kiwi and…
Plastic urinal screen transparent colour -…
Plastic urinal screen blue colour - cotton…
Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
Mounting frame to the plasterboard for a…
