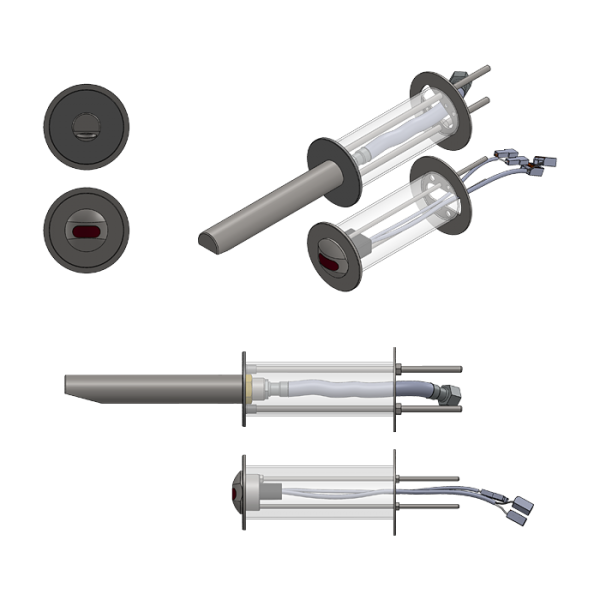

SLA 52A
Set of parts for mounting into the wall for SLU 39
Characteristics
- is destined for wall installation of automatic stainless steel washbasin taps (SLU 39, SLU 39X)
- rear assembling of sensor head with electronics by screws M4
- rear assembling of spout by screws M6
- during installation it is necessary to fasten the pipe (Htem DN 50) to reinforce the hole in the wall
- Order number: 06520
I am interested in more information:
Supply specification
SLA 52A - Supply No. 06520 - screw M4 (2 pcs.), screw M6 (2 pcs.), nut M4 (3 pcs.), nut M6 (2 pcs.), supporting pad (2 pcs.), pad for sensor head (1 pc.), hose
Technical information
| Depth of the wall: | max. 300 mm |
Downloads
- Mounting instructions (805.15 kB)
- Catalogue list (352.94 kB)
- 2D Drawing (149 kB)
